30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079000001 - 079999999) (1997) AIR-FILTER Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

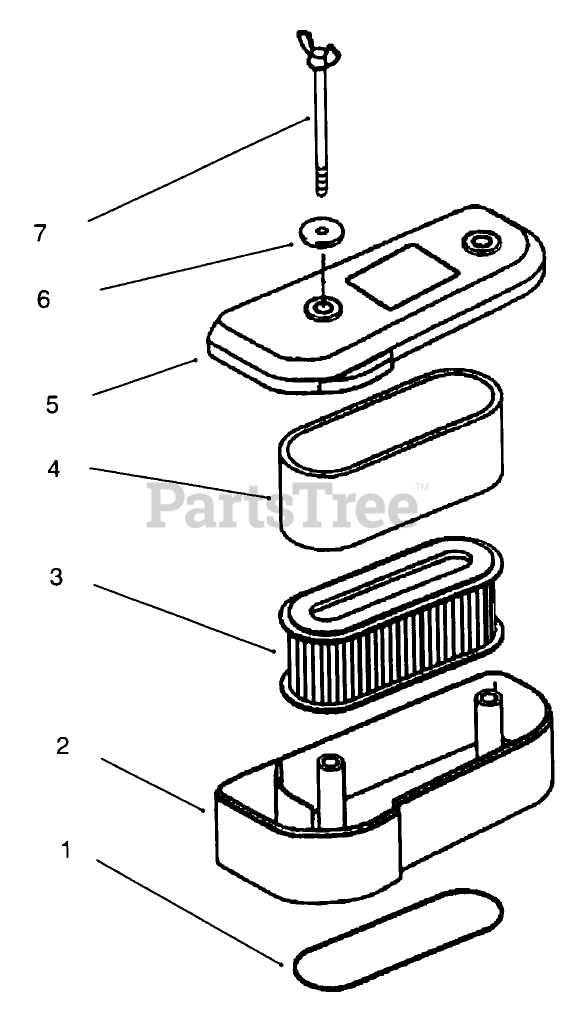

AIR-FILTER Parts Diagram

  • Title

1

Kawasaki 11009-2443

Gasket
(Superseded to 11009-2340)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$2.99

$

In Stock, only 1 left!

0

2

Toro 11011-2174

CASE-Air Filter

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

3

Kawasaki 11013-2021

Element

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$20.99

$

In Stock, Qty 11

0

4

Kawasaki 11013-2020

Element

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

In Stock, Qty 12

0

5

Kawasaki 11012-2192

CAP-Air Filter

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

6

Kawasaki 92022-2220

Washer
(Superseded to 92200-0423)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

7

Kawasaki 92002-2230

Bolt

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

In Stock, only 2 left!

0

Toro 11010-2291

Filter Assembly (Incl. Ref. #2-6)

Note: Not illustrated

$

$

Currently unavailable

Toro 11010-2291

Filter Assembly (Incl. Ref. #2-6)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable
