30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 069000001 - 069999999) (1996) PISTON/CRANKSHAFT Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

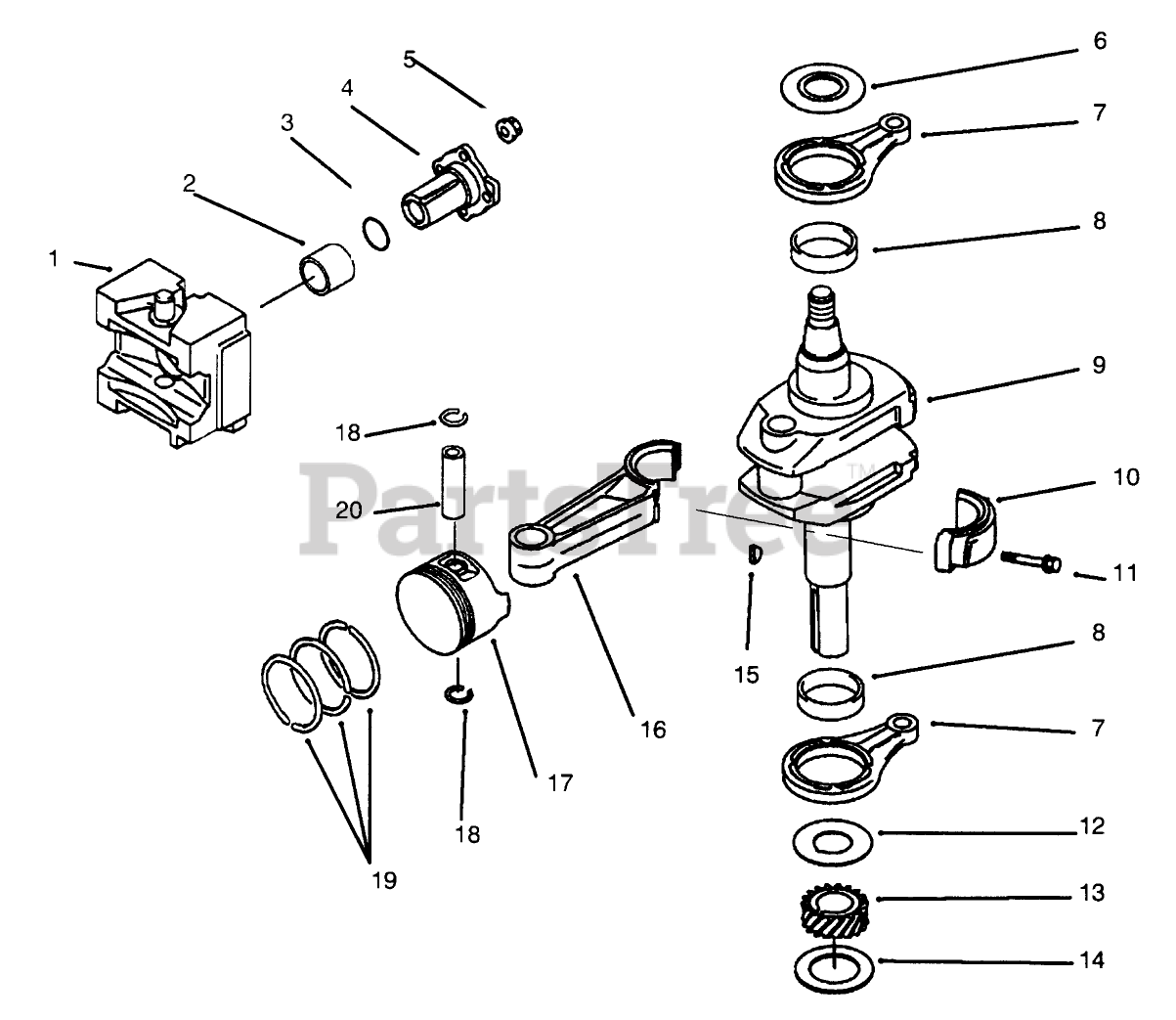

PISTON/CRANKSHAFT Parts Diagram

  • Title

1

Kawasaki 13042-6006

Weight (Incl. Ref. # 2)
(Superseded to 13042-6001)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$179.99

$

Usually ships in 2-5 days

0

2

Kawasaki 92141-2097

Bushing

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

3

Kawasaki 92055-2072

O-Ring

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$1.49

$

In Stock, Qty 20+

0

4

Toro 13107-2253

Shaft

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

5

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$4.49

$

In Stock, only 2 left!

0

6

Toro 92026-2164

Spacer

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

7

Kawasaki 46102-6007

Rod (Incl. Ref. #8)
(Superseded to 46102-6001)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

8

Kawasaki 92141-2108

Bearing

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

9

Kawasaki 49119-2177

CrankshaftASM
(Superseded to 49119-2133)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$283.99

$

Usually ships in 2-5 days

0

10

Cap-Rod

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

11

Kawasaki 92150-2193

Bolt

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

12

Toro 92026-2156

Spacer

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

13

Kawasaki 59056-2105

Gear
(Superseded to 59056-2018)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$46.99

$

Usually ships in 2-5 days

0

14

Kawasaki 92025-2145

Shim (1.18)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2146

Shim (1.25)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$6.49

$

Usually ships in 2-5 days

0

Kawasaki 92025-2147

Shim (1.32)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2148

Shim (1.39)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2149

Shim (1.46)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2150

Shim (1.53)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2151

Shim (1.60)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2152

Shim (1.67)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$3.99

$

In Stock, only 1 left!

0

Kawasaki 92025-2153

Shim (1.74)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$5.99

$

Usually ships in 2-5 days

0

Kawasaki 92180-2015

Shim T=1.11

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$5.49

$

Usually ships in 2-5 days

0

Kawasaki 92180-2016

Shim T=1.81

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$5.99

$

Usually ships in 2-5 days

0

15

Kawasaki 92038-2094

Key

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$2.49

$

Usually ships in 2-5 days

0

16

Kawasaki 13251-6005

Rod-Assy. Connecting (Incl. Ref. #10 & 11)
(Superseded to 13251-6001)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$89.99

$

In Stock, only 1 left!

0

Kawasaki 13251-6007

Rod-Assy. Connecting U/S=0.50 (Incl. Ref. #10 7 11)
(Superseded to 13251-6002)

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$97.99

$

Usually ships in 2-5 days

0

17

Kawasaki 13001-2084

Piston

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

Toro 13029-2019

Piston 0.25

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

Toro 13029-2020

Piston 0.50

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

18

Toro 92033-2066

Ring-Snap

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

19

Kawasaki 13008-6001

Piston Ring Set

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$60.99

$

Usually ships in 2-5 days

0

Kawasaki 13008-6002

Set-Ring Piston 0.25

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Not available

Toro 13008-6003

Set-Ring Piston 0.50

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable

20

Toro 13002-2066

Pin-Piston

Note: Kawasaki Model FB460V Type KS08. Order Parts from Kawasaki.

$

$

Currently unavailable
