30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 069000001 - 069999999) (1996) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

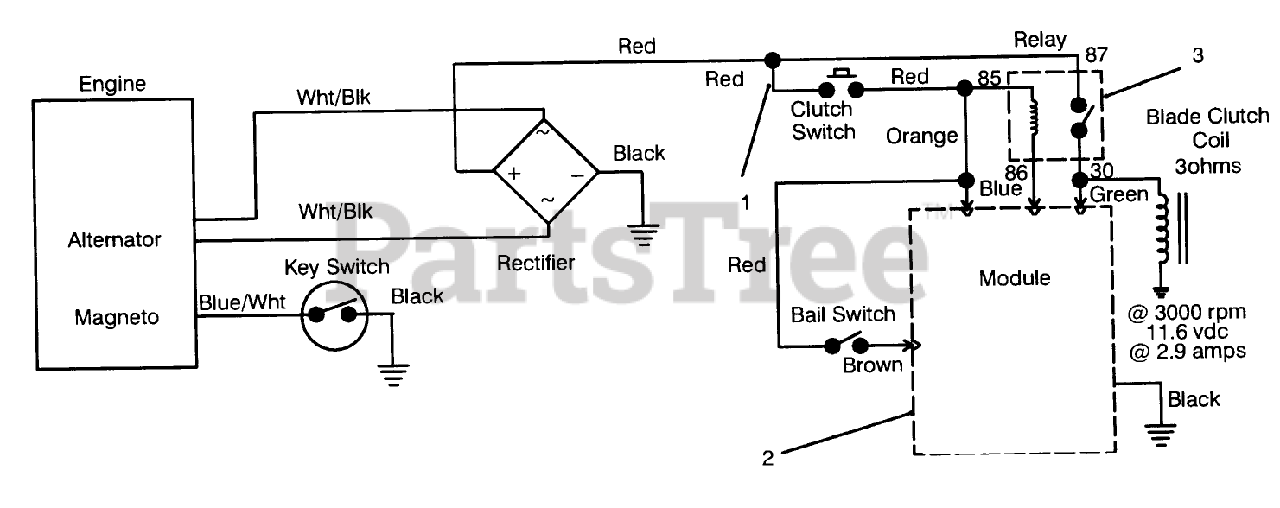

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 82-2240

Wire Harness
(Superseded to 95-2804)

$

$

Not available

2

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available

3

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days
