30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) CLUTCH ASSEMBLY N0. 54-3200 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

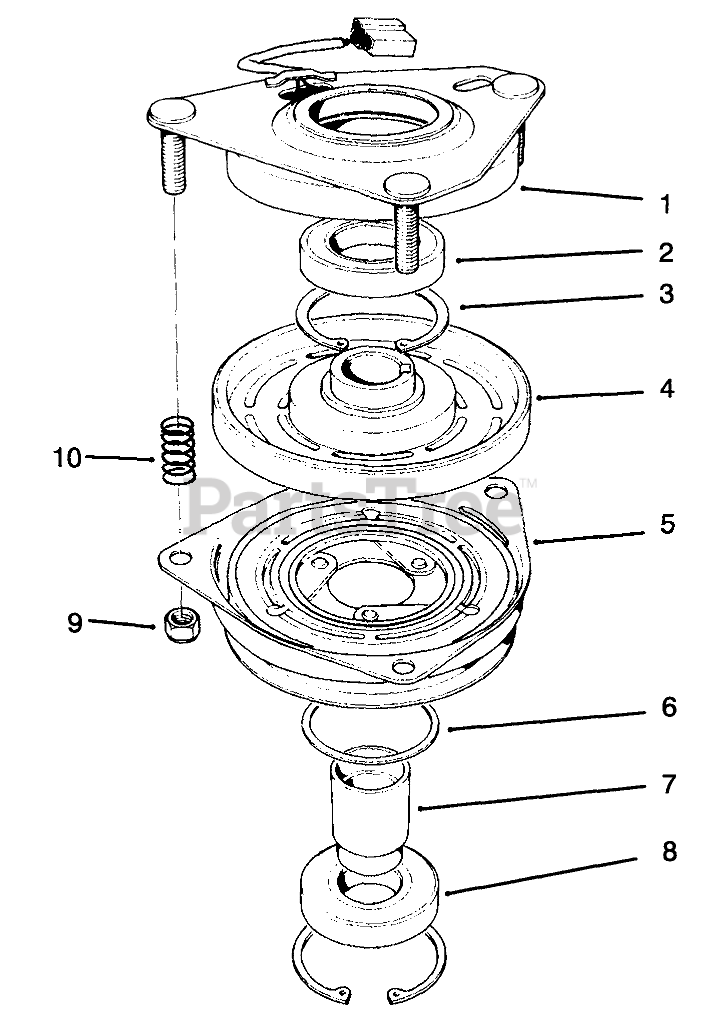

CLUTCH ASSEMBLY N0. 54-3200 Parts Diagram

  • Title

1

Toro 54-0230

Field Assembly (Incl. Ref. # 2 & 3)

$415.99

$

Usually ships in 3-6 days

0

2

Toro 251-292

BEARING-FIELD

$134.99

$

Usually ships in 3-6 days

0

3

Toro 44-8310

RING-RETAINING

$

$

Not available

4

Toro 44-8360

Field Coil, Rotor & Bearing Assembly (Incl. Ref. # 1)

$669.99

$

Usually ships in 3-6 days

0

5

Toro 55-7410

Armature & Pulley Assembly (Incl. Ref. # 3, 6, 7, & 8)
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

6

Toro 44-8330

SPACER-BEARING, PULLEY

$

$

Not available

7

Toro 44-8340

COLLAR-BEARING

$

$

Not available

8

Toro 251-291

BEARING-PULLEY
(Superseded to 251-312)

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

10

Toro 44-8320

SPRING

$9.49

$

Usually ships in 3-6 days

0
