30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

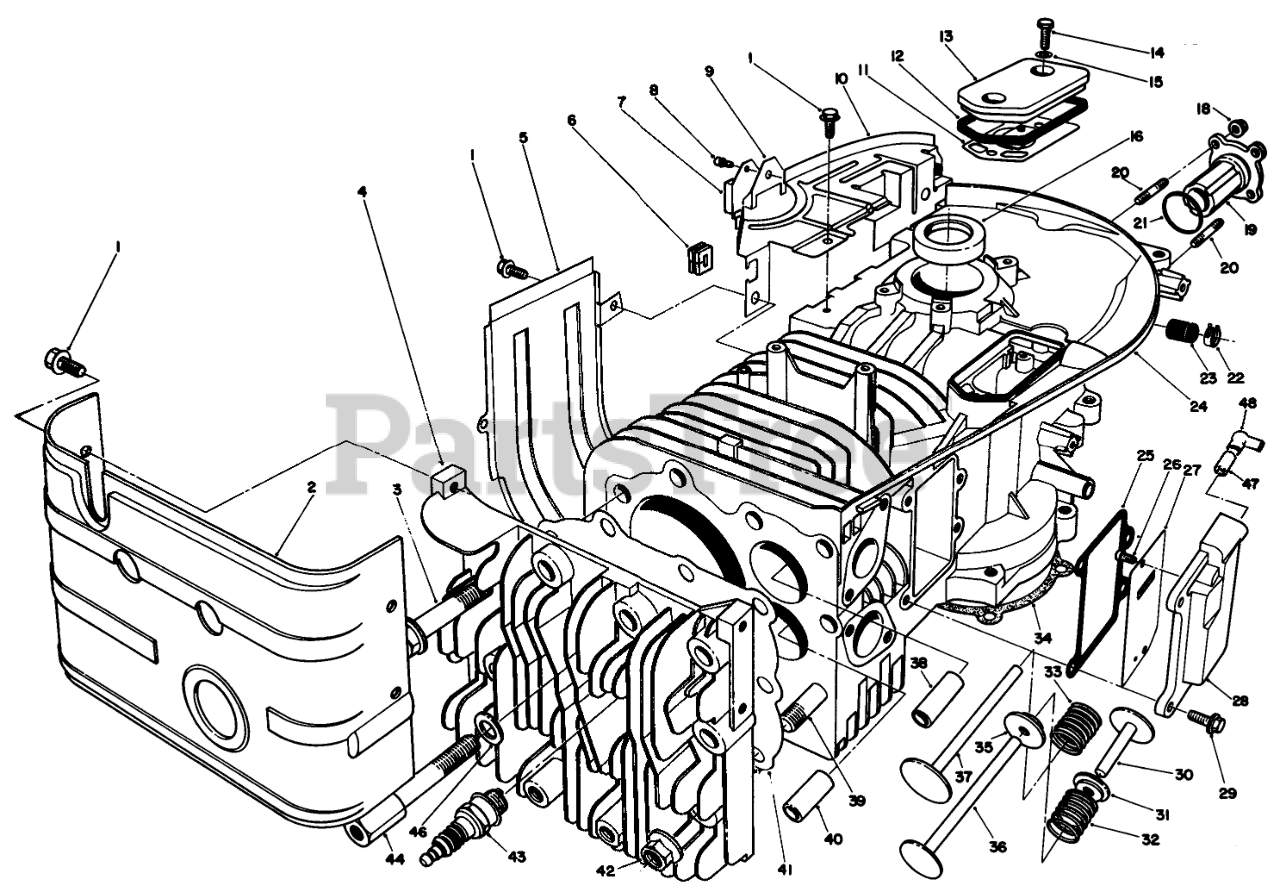

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 130G0610

Bolt-Flanged (6X10)

$

$

Currently unavailable

2

Toro 49089-2181-9H

Shroud

$

$

Currently unavailable

3

Kawasaki 130G1055

Bolt
(Superseded to 130BA1055)

$

$

Not available

4

Kawasaki 11001-2102

Cylinder Head
(Superseded to 11001-2151)

$

$

Not available

5

Toro 49089-2199-9H

Shroud

$

$

Currently unavailable

6

Kawasaki 92071-2099

Grommet

$

$

Not available

7

Toro 21119-2095

Igniter

$

$

Currently unavailable

8

Toro 234b0408

Screw

$

$

Currently unavailable

9

Toro 310702-8137A

Bracket

$

$

Currently unavailable

10

Toro 59066-2295-9H

Fan Housing

$

$

Currently unavailable

11

Kawasaki 14069-2062

Breather

$

$

Not available

12

Toro 11009-2339

Gasket

$

$

Currently unavailable

13

Kawasaki 14025-2040

Cover

$

$

Not available

14

Kawasaki 315501-5381A

Bolt
(Superseded to 92002-2087)

$0.99

$

In Stock, only 4 left!

0

15

Toro 312200-7415-02

Gasket

$

$

Currently unavailable

16

Toro 92049-2049

Seal-Oil

$

$

Currently unavailable

18

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

19

Kawasaki 13107-2091

Shaft
(Superseded to 13107-2232)

$

$

Not available

20

Kawasaki 92004-2083

Stud

$1.99

$

Usually ships in 2-5 days

0

21

Kawasaki 92055-2072

O-Ring

$1.49

$

In Stock, Qty 20+

0

22

Toro 31796-6812-00

Clip

$

$

Currently unavailable

23

Kawasaki 92066-2096

Plug

$1.99

$

In Stock, only 3 left!

0

24

Toro 49120-6025

Crankcase Assembly

$

$

Currently unavailable

25

Toro 11009-2502

Gasket

$

$

Currently unavailable

26

Toro 314405-3092A

Screw

$

$

Currently unavailable

27

Toro 14025-2143

Cover

$

$

Currently unavailable

28

Toro 49108-2011

Cover-Valve Chamber

$

$

Currently unavailable

29

Toro 130G0616

Bolt-Flanged (6X16)

$

$

Currently unavailable

30

Kawasaki 12032-2058

Tappet

$

$

Not available

31

Kawasaki 39108-2054

Retainer-Spring

$

$

Not available

32

Kawasaki 49078-2058

Spring-Valve
(Superseded to 49078-2074)

$

$

Not available

33

Kawasaki 49078-2059

Spring-Valve
(Superseded to 49078-2075)

$

$

Not available

34

Kawasaki 11009-2337

Gasket
(Superseded to 11060-2481)

$

$

Not available

35

Kawasaki 12039-2052

Rotator

$

$

Not available

36

Kawasaki 12005-2066

Exhaust Valve
(Superseded to 12005-2065)

$

$

Not available

37

Kawasaki 12004-2076

Intake Valve
(Superseded to 12004-2072)

$28.99

$

In Stock, only 1 left!

0

38

Kawasaki 49002-2070

Guide-Intake Valve
(Superseded to 49002-2012)

$

$

Not available

39

Toro 92004-2082

Stud

$

$

Currently unavailable

40

Toro 49002-2071

Guide-Exhaust Valve

$

$

Currently unavailable

41

Kawasaki 11004-2079

Gasket
(Superseded to 11004-2091)

$16.99

$

In Stock, only 4 left!

0

42

Toro 92015-2115

Nut

$

$

Currently unavailable

43

Kawasaki 92070-2072

Spark Plug
(Superseded to BMR4A)

$3.49

$

In Stock, only 4 left!

0

44

Kawasaki 92002-2258

Bolt

$

$

Not available

46

Toro 410B1000

Washer

$

$

Currently unavailable

47

Kawasaki 92059-2142

Tube

$

$

Not available

48

Toro 59071-2062

Joint

$

$

Currently unavailable
