30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 220000001 - 220999999) (2002) STARTER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28B702-1041-E1 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

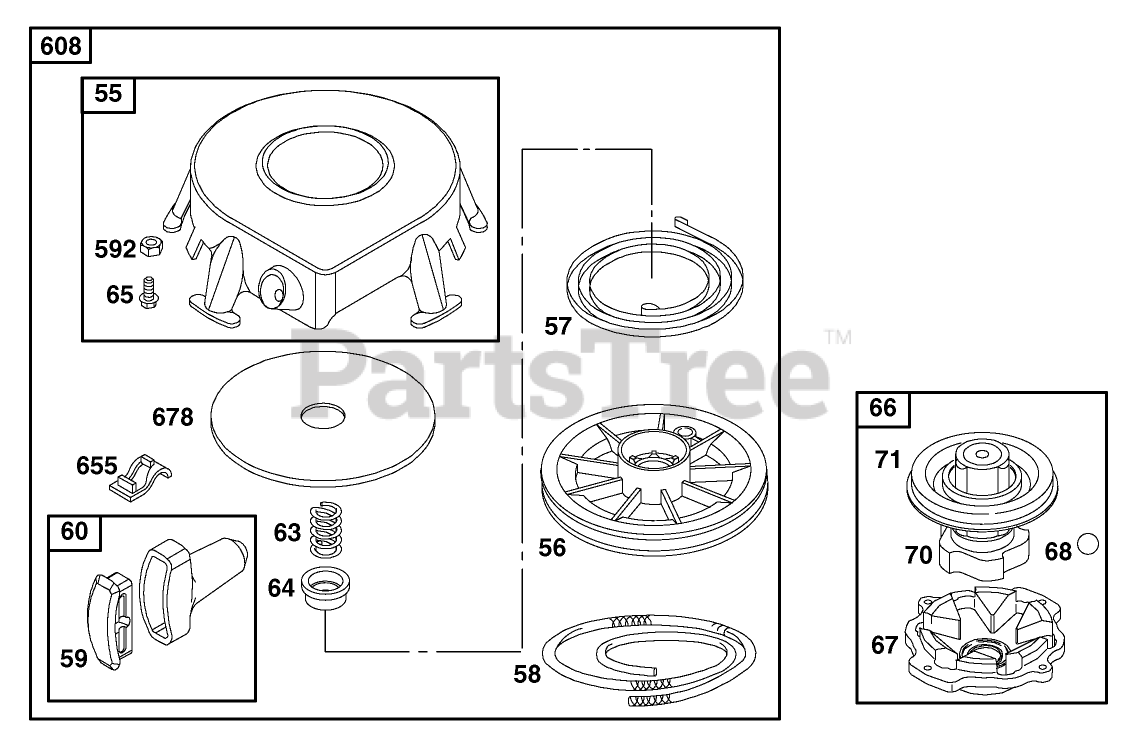

STARTER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28B702-1041-E1 Parts Diagram

  • Title

55

Briggs & Stratton 393576

Rewind Starter Housing (Includes 63" Rope)

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 490653

Grip Insert
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

60

Briggs & Stratton 490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 10

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 281204

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 690837

Screw

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 691359

Ratchet Cover

$9.99

$

In Stock, Qty 13

0

592

Briggs & Stratton 690800

Nut

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, Qty 10

0

678

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, Qty 5

0
