30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 220000001 - 220999999) (2002) FRONT CASTER AND BLADE BRAKE ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

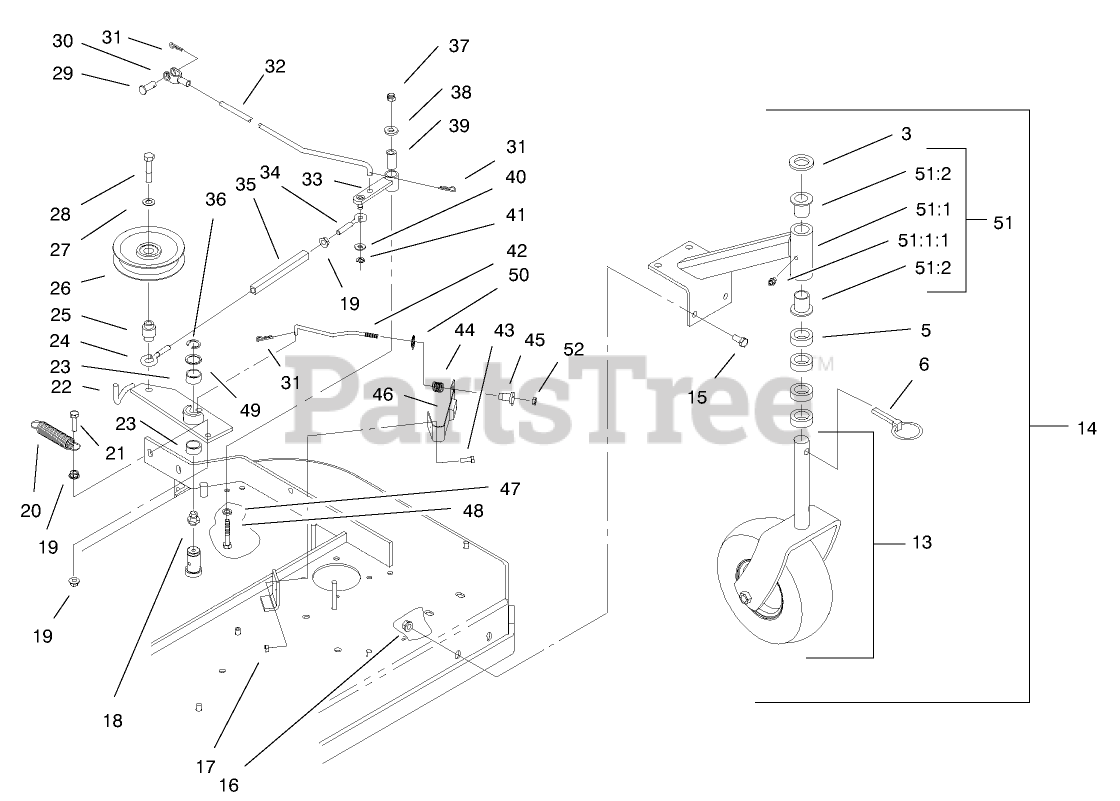

FRONT CASTER AND BLADE BRAKE ASSEMBLY Parts Diagram

  • Title

3

Toro 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

5

Toro 1-303314

SPACER-CASTER

$6.49

$

In Stock, Qty 8

0

6

Toro 1-809020

PIN

$11.99

$

In Stock, only 2 left!

0

13

Toro 1-322154

CASTER/WHEEL ASM

$

$

Not available

14

Toro 1-322153

CASTER/MOUNT ASM

$

$

Not available

15

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

16

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

21

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 1-324408

ASM,IDLER ARM/BUSHINGS
(Superseded to 103-3600)

$133.99

$

Usually ships in 3-6 days

0

23

Toro 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, only 2 left!

0

24

Toro 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

25

Toro 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, only 1 left!

0

26

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 17

0

27

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

28

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

30

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

31

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

32

Toro 1-323303

ARM-ASSIST, LINKAGE

$25.99

$

In Stock, only 2 left!

0

33

Toro 1-322235

ARM-ASSIST

$54.99

$

Usually ships in 3-6 days

0

34

Toro 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

35

Toro 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, only 3 left!

0

36

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

38

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 1-403179

TUBE-PIVOT

$18.99

$

In Stock, only 1 left!

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

42

Toro 1-323718

Rod-Brake

$26.99

$

Usually ships in 3-6 days

0

43

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 10

0

45

Toro 1-323746

SPACER-FLANGED

$1.49

$

In Stock, only 3 left!

0

46

Toro 1-324372

PAD AND SPRING ASM

$68.99

$

In Stock, only 1 left!

0

47

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

48

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

49

Toro 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, only 3 left!

0

50

Toro 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 7

0

51

Toro 1-302203

SUPPORT ASM

$299.99

$

Usually ships in 3-6 days

0

51:1

Toro 1-302194-01

SUPPORT-CASTER

$

$

Not available

51:1:1

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

51:2

Toro 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 15

0

52

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
