30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 220000001 - 220999999) (2002) CASTER AND WHEEL ASSEMBLY NO. 1-322154 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

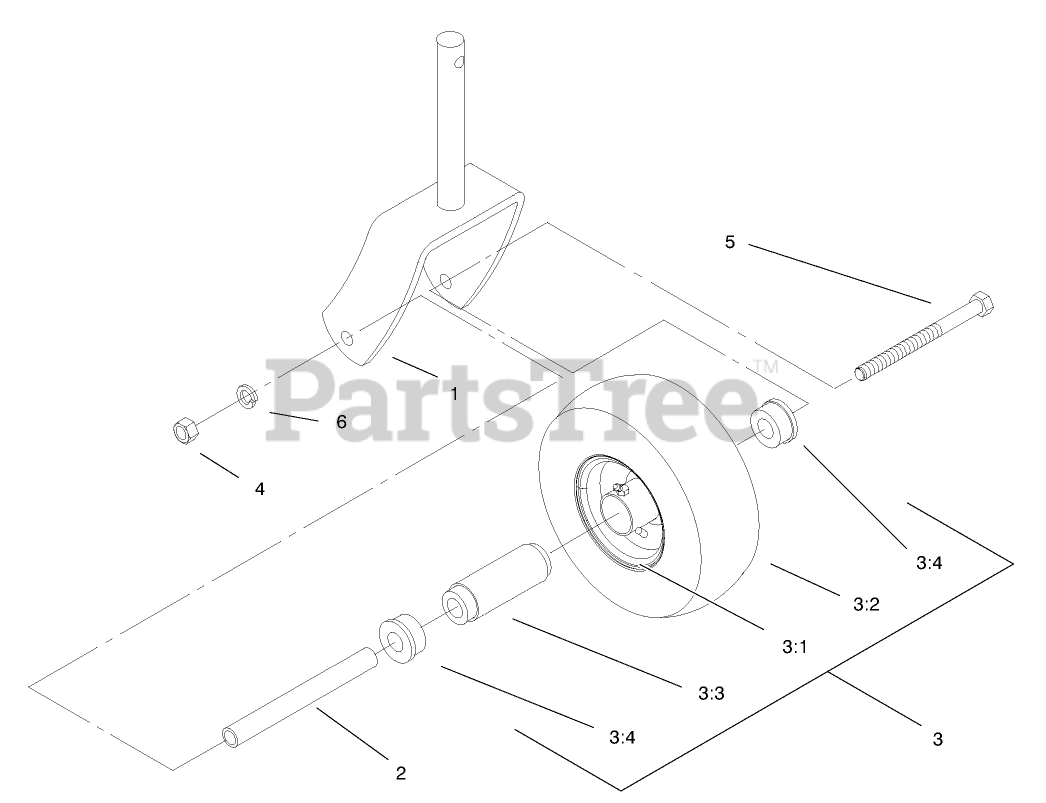

CASTER AND WHEEL ASSEMBLY NO. 1-322154 Parts Diagram

  • Title
1

Toro 1-322145-01

FORK
(Superseded to 116-7942-01)

$95.99

$

In Stock, only 3 left!

0

2

Toro 1-513547

SPACER

$12.99

$

In Stock, Qty 20+

0

3

Toro 1-513648

WHEEL AND TIRE ASM

$91.99

$

In Stock, only 1 left!

0

3:1

Rim

Note: Not serviced separately

$

$

Not available

3:2

$43.99

$

In Stock, only 4 left!

0

3:3

Toro 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

0

3:4

Toro 1-513810

BUSHING

$5.99

$

In Stock, Qty 20+

0

4

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

6

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0
