30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28B702-1041-E1 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

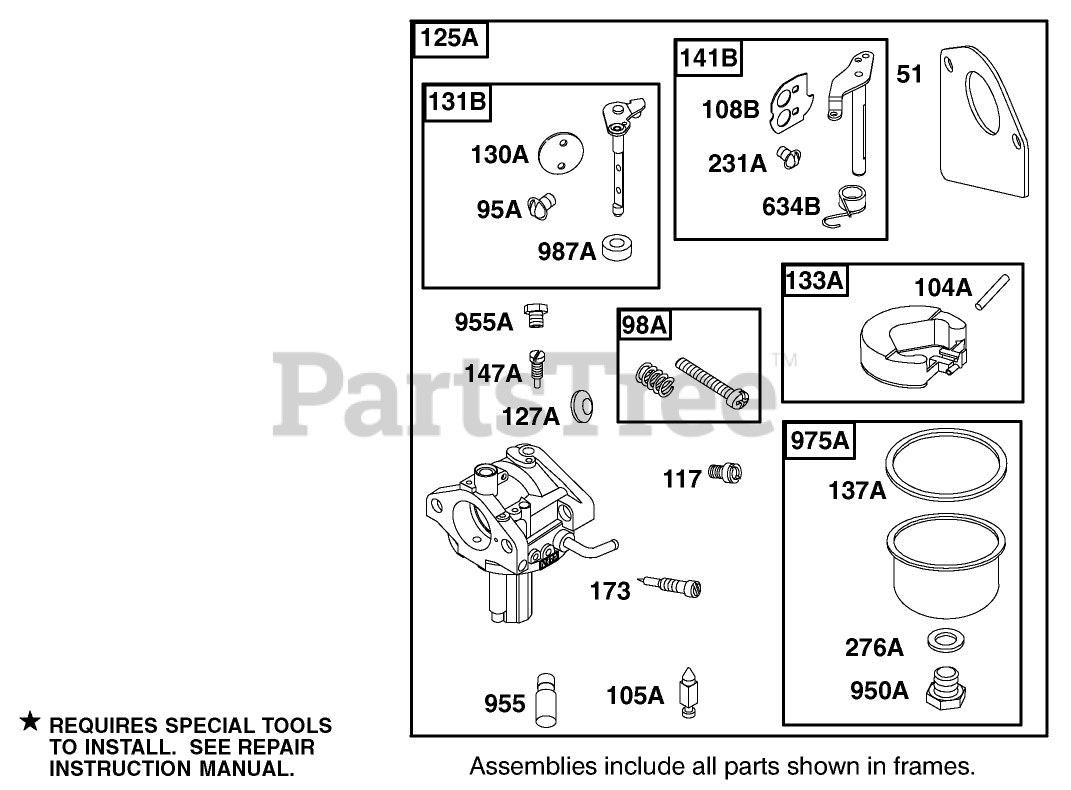

CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28B702-1041-E1 Parts Diagram

  • Title

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, only 3 left!

0

95A

Briggs & Stratton 805538

Screw
(Superseded to 690718)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 694907

Idle Speed Kit

$

$

Not available

104A

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$15.99

$

In Stock, Qty 20+

0

108B

Briggs & Stratton 694923

Choke Valve

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690880

Main Jet (Standard)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 694925

Main Jet (High Altitude)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

125A

Briggs & Stratton 694941

Carburetor
(Superseded to 699831)

$205.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 694916

Welch Plug
(Superseded to 806460)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$10.99

$

In Stock, only 1 left!

0

130B

Briggs & Stratton 694917

Throttle Valve

$

$

Not available

131B

Briggs & Stratton 694909

Throttle Shaft Kit

$64.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 694914

Carburetor Float ASM

$25.99

$

In Stock, Qty 9

0

137

Briggs & Stratton 694920

Float Bowl Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.99

$

In Stock, only 4 left!

0

141B

Briggs & Stratton 694913

Choke Shaft

$45.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$7.99

$

In Stock, Qty 6

0

276A

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

In Stock, Qty 6

0

634B

Briggs & Stratton 694912

Spring/Seal Assembly

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

950A

Briggs & Stratton 694919

Float Bowl Screw

$10.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 694924

Carburetor Plug

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

955A

Briggs & Stratton 694921

Carburetor Plug

$4.99

$

In Stock, only 1 left!

0

975A

Briggs & Stratton 694908

Float Bowl

$

$

Not available

987A

Toro 281765

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable
