30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

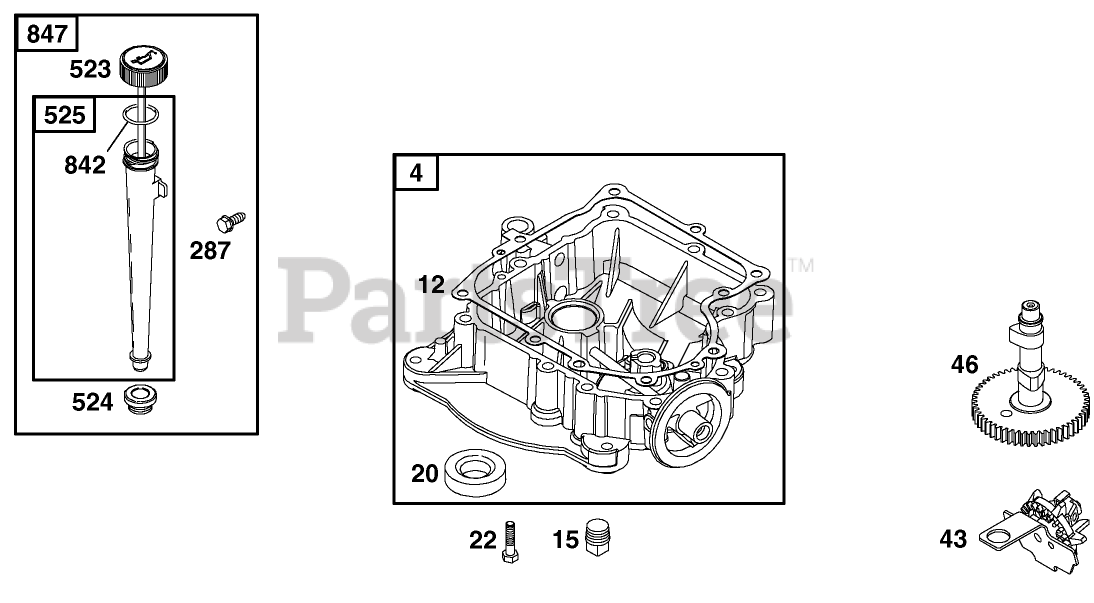

ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

  • Title

1

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$4.99

$

In Stock, only 3 left!

0

4

Briggs & Stratton 494238

Base-Engine

$

$

Not available

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, Qty 5

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Engine Gasket Set-Ref. 358.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

19

Briggs & Stratton 490666

Bushing-Sump

$40.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 490815

Gear-Governor
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 692123

Camshaft
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$15.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 694916

Welch Plug
(Superseded to 806460)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$10.99

$

In Stock, only 1 left!

0

130B

Briggs & Stratton 694917

Throttle Valve

$10.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 694920

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$9.99

$

In Stock, only 4 left!

0

287

Briggs & Stratton 691002

Screw (Dipstick Tube)

$8.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 495229

Dipstick
(Superseded to 692013)

$25.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 690841

Dipstick Tube

$22.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 496367

Fill Group-Oil

$30.99

$

Usually ships in 2-12 days

0
