30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 200000001 - 200999999) (2000) 36" DECK ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

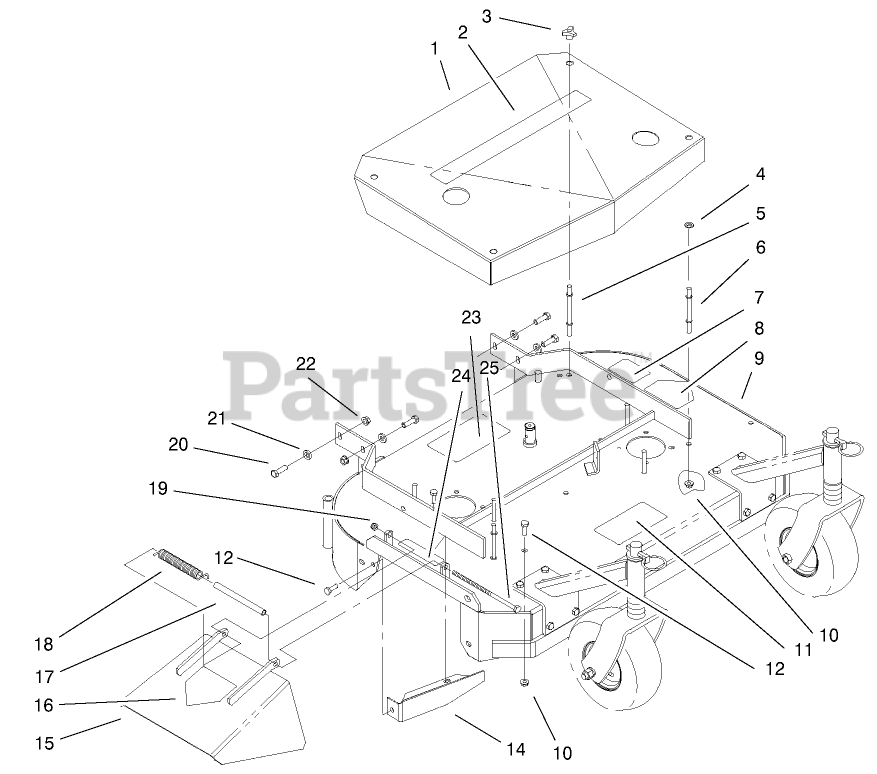

36" DECK ASSEMBLY Parts Diagram

  • Title

1

Toro E324407

Belt Cover w/Decal
(Superseded to 1-324407)

$416.99

$

Usually ships in 3-6 days

0

2

Toro 100-6482

DECAL-PROLINE 32

$

$

Not available

3

Toro E323385

Knob
(Superseded to 1-323385)

$5.49

$

In Stock, Qty 20+

0

4

Toro E323417

Washer
(Superseded to 1-323417)

$3.49

$

In Stock, Qty 20+

0

5

Toro E303536

Stud-Belt Shield(Long)
(Superseded to 1-303536)

$7.99

$

In Stock, Qty 20+

0

6

Toro E303537

Stud-Belt Shield(Short)
(Superseded to 1-303537)

$6.49

$

In Stock, Qty 20+

0

7

Toro 98-5130

DECAL-TORQUE, BOLT

$31.99

$

Usually ships in 3-6 days

0

8

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

9

Toro 103-0036

32" DECK W/DECALS ASM

$2855.99

$

Usually ships in 3-6 days

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro E302189

Baffle
(Superseded to 1-302189-01)

$49.99

$

Usually ships in 3-6 days

0

15

Toro E304256

Discharge Chute w/Decal
(Superseded to 1-304256)

$212.99

$

In Stock, only 1 left!

0

16

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

17

Toro 98-3281

SPACER-SPRING

$

$

Not available

18

Toro 98-3280

SPRING-DEFLECTOR

$28.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 98-3296

DECAL-ROUTING, BELT

$22.99

$

Usually ships in 3-6 days

0

24

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

25

Toro E800289

Screw-HH
(Superseded to 322-50)

$6.49

$

In Stock, only 4 left!

0
