30162 - Toro 62" Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) SPINDLE ASSEMBLY & BLADE Parts Diagram

62" Side-Discharge Mower Deck

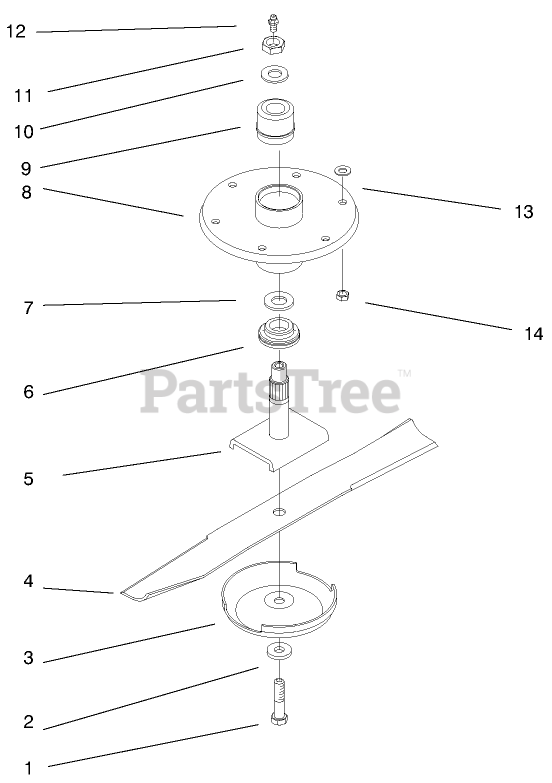

SPINDLE ASSEMBLY & BLADE Parts Diagram

  • Title

1

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

2

Toro 67-5770

WASHER

$4.49

$

Usually ships in 3-6 days

0

3

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0

4

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$26.99

$

In Stock, only 3 left!

0

5

Toro 51-3551

Shaft-Spindle
(Superseded to 105-1686)

$206.99

$

In Stock, only 1 left!

0

Toro 27-0920

SHAFT

Note: Not illustrated

$190.99

$

In Stock, only 1 left!

0

6

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

7

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

8

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

9

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

10

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

11

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

12

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

14

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

Toro 44-6370

Spindle Housing Assembly (Incl. Ref.# 6-8, 9 & 11-13)

Note: Not illustrated

$

$

Not available
