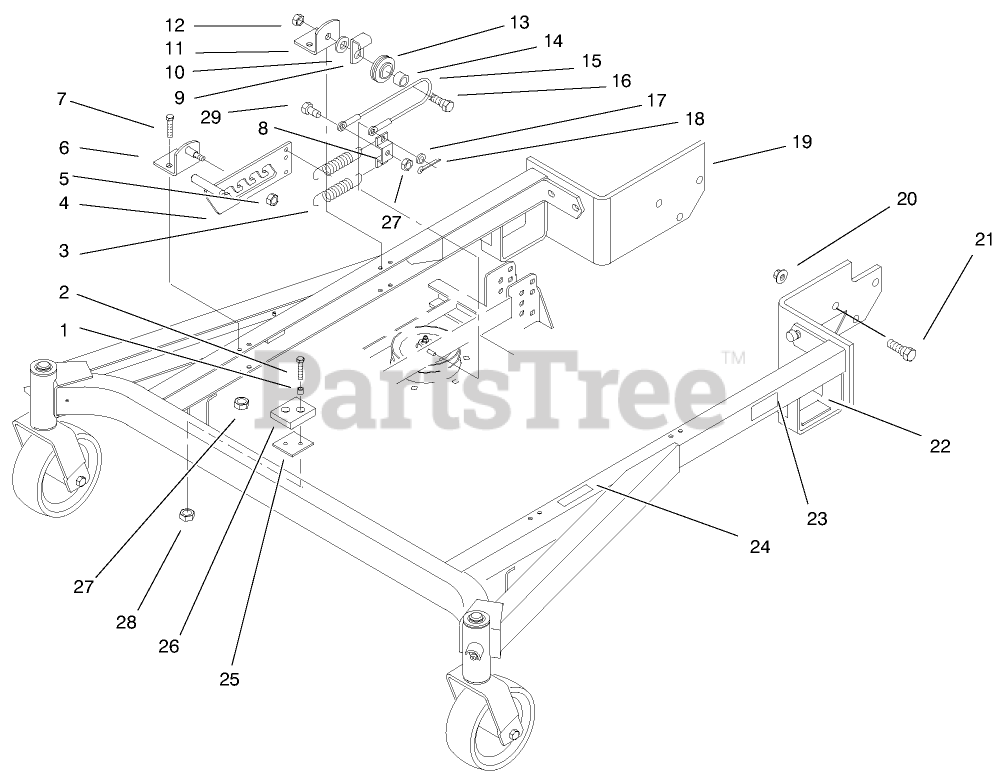

30162 - Toro 62" Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) CARRIER FRAME Parts Diagram

62" Side-Discharge Mower Deck

CARRIER FRAME Parts Diagram

  • Title
1

Toro 40-9520

SPACER

$0.99

$

Usually ships in 3-6 days

0

2

$5.99

$

Usually ships in 3-6 days

0

3

Toro 56-2770

EXTENSION SPRING

$32.99

$

Usually ships in 3-6 days

0

4

Toro 56-3330

Control-Tension
(Superseded to 56-3330-01)

$87.99

$

Usually ships in 3-6 days

0

5

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 56-3340

Bracket-Control
(Superseded to 56-3340-01)

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 59-5390

SPRING BRACKET

$

$

Not available

9

Toro 56-2780

CABLE RETAINER

$

$

Not available

10

Toro 252-98

THRUST WASHER

$

$

Not available

11

Toro 56-3360

Bracket-Pulley
(Superseded to 56-3360-01)

$

$

Not available

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

13

Toro 3-8775

Pulley Assembly (Incl. Ref.#14)

$

$

Not available

14

Toro 256-159

BUSHING

$

$

Not available

15

Toro 56-3350

CABLE

$

$

Not available

16

Toro 59-5400

BOLT-SHOULDER

$62.99

$

Usually ships in 3-6 days

0

17

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

19

Toro 16-2009

Carrier Frame Assembly (Incl. Ref. #23, 24)

$

$

Not available

20

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

21

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

22

Toro 92-5416

REAR RUBBER PAD

$

$

Not available

23

Toro 85-7450

DECAL-HOC, LH

$

$

Not available

Toro 85-7460

DECAL-HOC, RH

Note: Not illustrated

$

$

Not available

24

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

25

Toro 92-5418

CUSHING SHIM

$

$

Not available

26

Toro 92-5417

CUSHION-RUBBER

$

$

Not available

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
