30162 - Toro 62" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) BELTS, ROLLERS AND GAGE WHEEL Parts Diagram

62" Side-Discharge Mower Deck

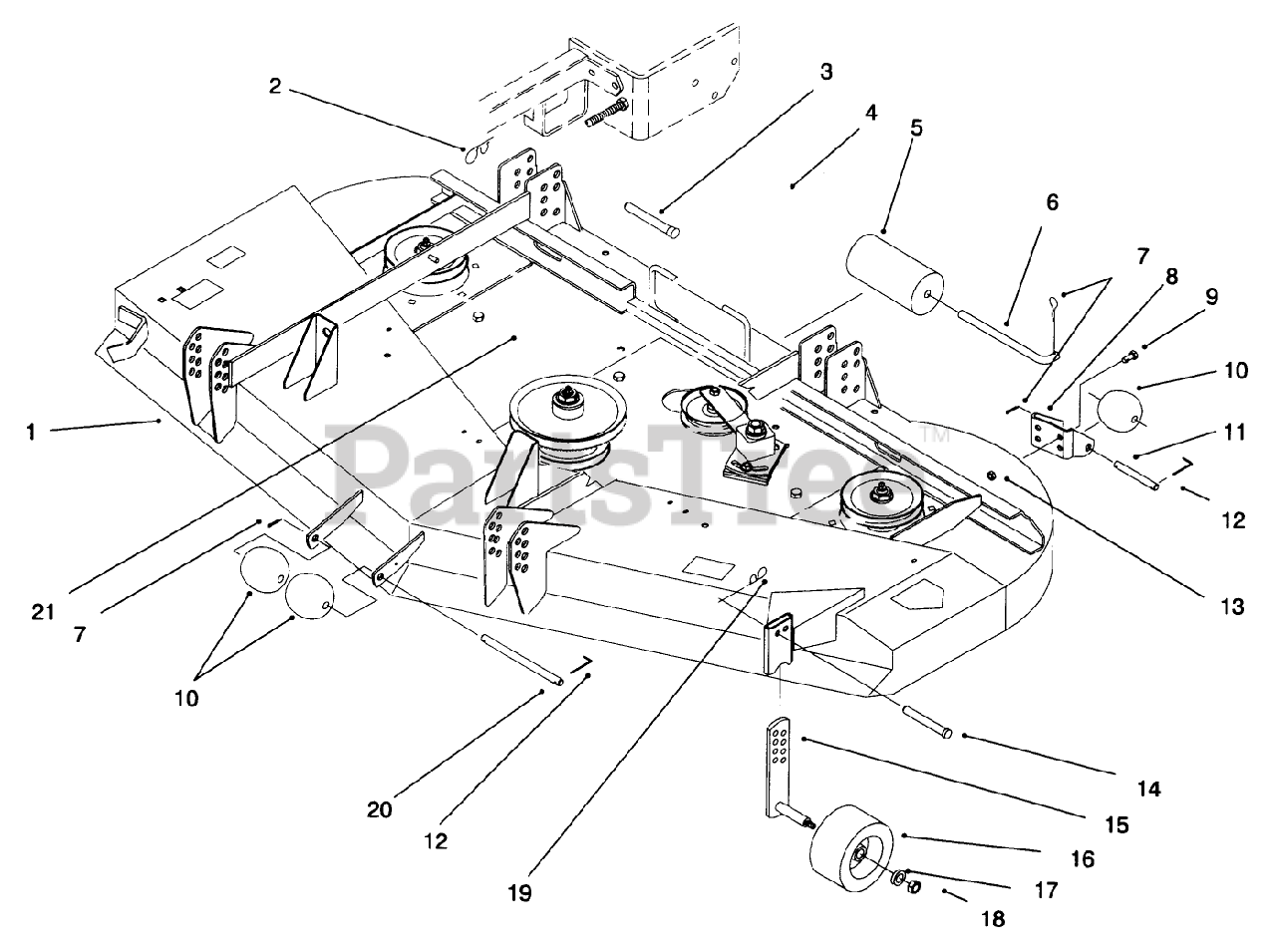

BELTS, ROLLERS AND GAGE WHEEL Parts Diagram

  • Title

1

Toro 14-1519

Deck Assembly (Incl. Decals on page 2)

$5689.99

$

Usually ships in 3-6 days

0

2

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

3

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

4

Toro 74-1330

V-BELT, DECK DRIVE

$139.99

$

Usually ships in 3-6 days

0

5

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

6

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

7

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

8

Toro 57-0580

Bracket-Roller
(Superseded to 57-0580-01)

$70.99

$

Usually ships in 3-6 days

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

11

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

12

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

15

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

16

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

19

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

20

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

21

Toro 44-6260

V-BELT

$68.99

$

In Stock, only 3 left!

0

Toro 16-2159

GAGE WHL CHANNEL WA R

Note: Not illustrated

$

$

Not available
