30162 - Toro 62" Side-Discharge Mower Deck (SN: 049000001 - 049002000) (1994) PULLEYS AND IDLER ASSEMBLY Parts Diagram

62" Side-Discharge Mower Deck

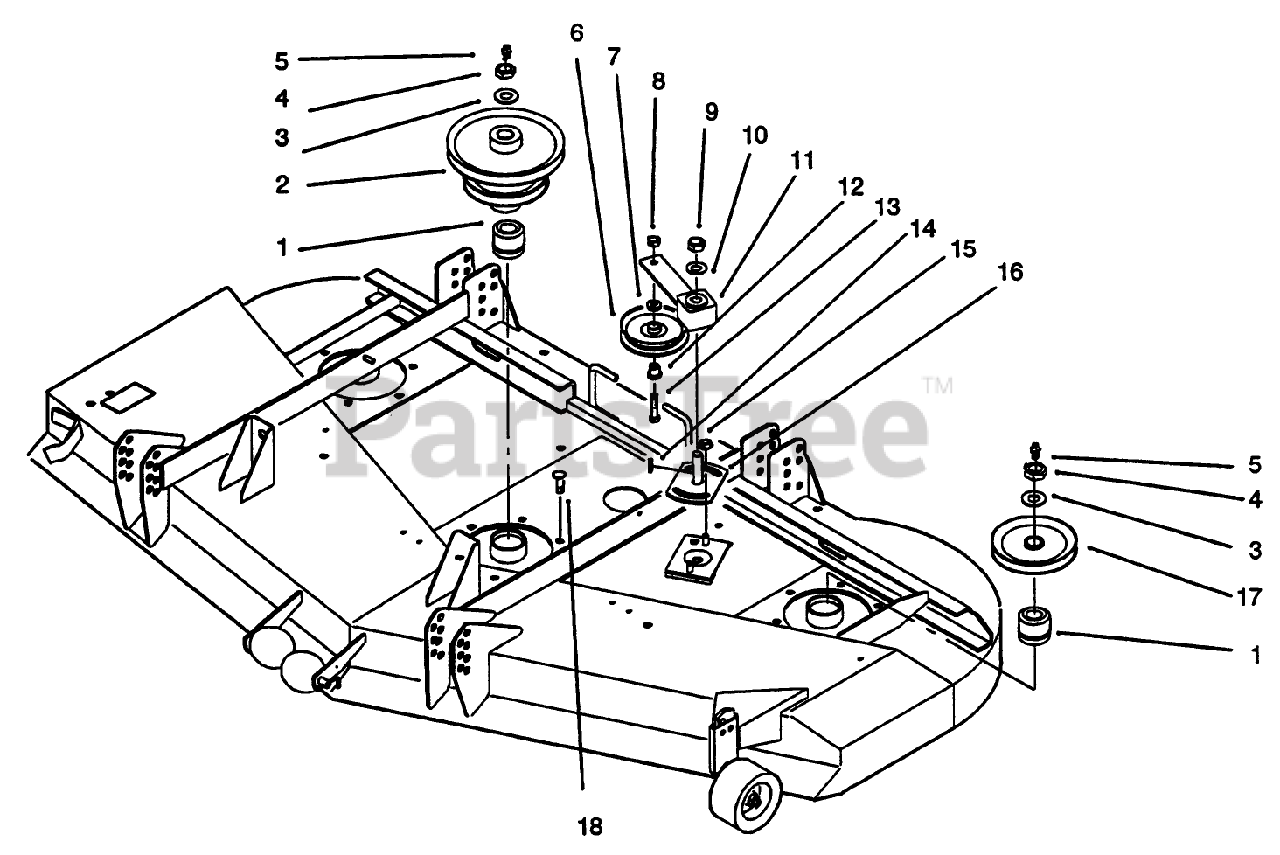

PULLEYS AND IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

2

Toro 74-1230

PULLEY & HUB WA B

$

$

Not available

3

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

4

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

5

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

6

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

7

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

8

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

9

Toro 3296-71

NUT-LOCK NI

$8.49

$

In Stock, only 1 left!

0

10

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

11

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

12

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

13

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

14

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

15

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Toro 44-6301

PLATE-IDLER, LH

$157.99

$

In Stock, Qty 5

0

17

Toro 44-6340

PULLEY AND HUB ASM

$70.99

$

In Stock, only 1 left!

0

18

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0
