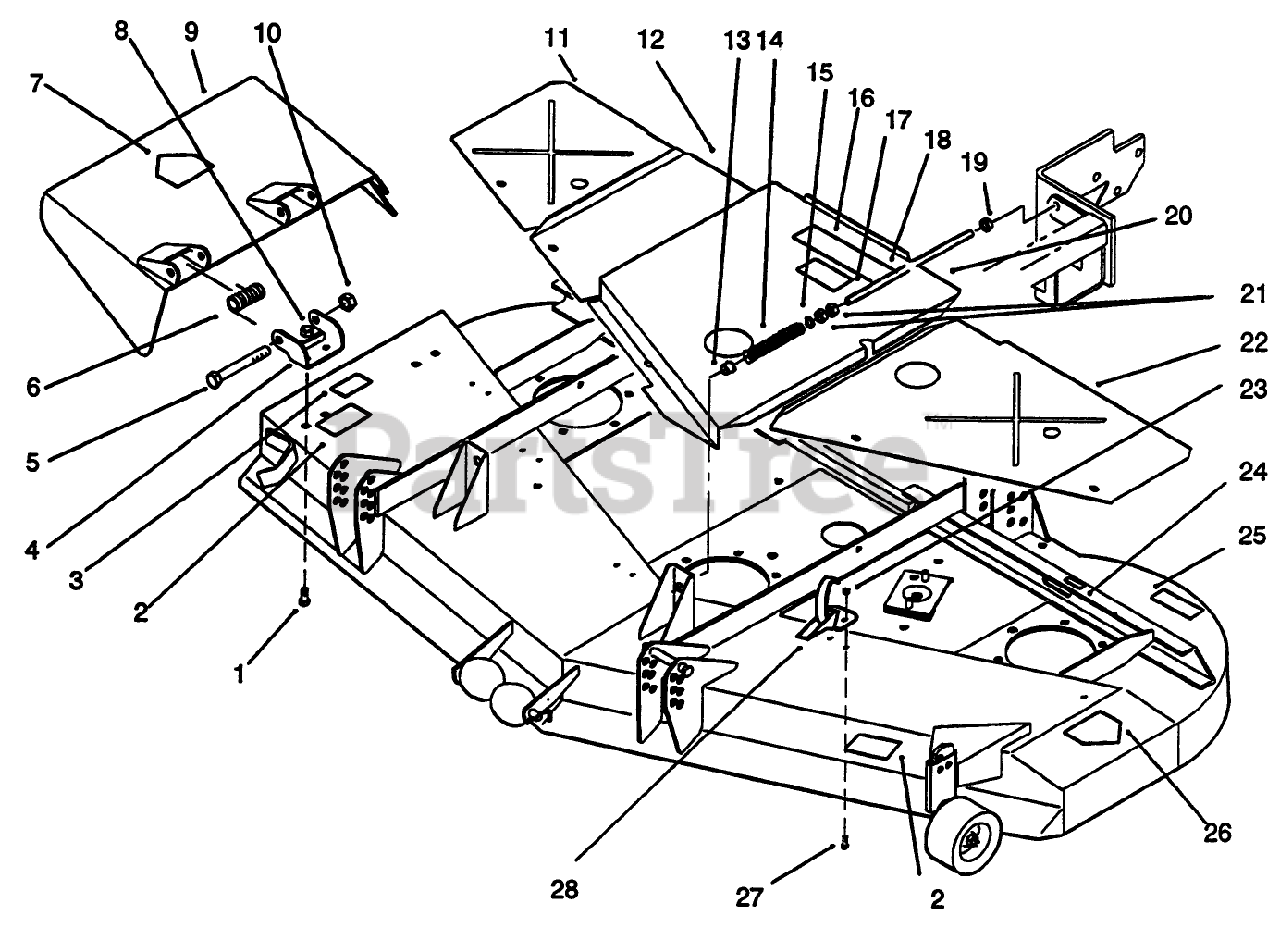

30162 - Toro 62" Side-Discharge Mower Deck (SN: 049000001 - 049002000) (1994) GRASS DEFLECTOR, BELT COVERS & DECALS Parts Diagram

62" Side-Discharge Mower Deck

GRASS DEFLECTOR, BELT COVERS & DECALS Parts Diagram

  • Title
1

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

2

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

3

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

4

Toro 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)

$40.99

$

Usually ships in 3-6 days

0

5

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

0

6

Toro 51-1550

SPRING

$13.99

$

In Stock, only 2 left!

0

7

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 14-0909

Deflector Assembly (Incl. Ref. #7 & 26)

$403.99

$

Usually ships in 3-6 days

0

10

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

11

Toro 63-9830

Cover-Deck R.H.
(Superseded to 63-9830-01)

$

$

Not available

12

Toro 74-1310

Cover-Deck, Center R.H.
(Superseded to 74-1310-01)

$

$

Not available

13

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

14

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

15

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

16

Toro 74-2080

DECAL-PROLINE

$

$

Not available

17

Toro 66-1630

DECAL

$17.99

$

Usually ships in 3-6 days

0

18

Toro 74-0311

ADJUSTING SHAFT

$

$

Not available

19

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

20

Toro 74-1320

Cover-Deck, Center L.H.
(Superseded to 74-1320-01)

$

$

Not available

21

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 44-6291

Cover-Deck L.H.
(Superseded to 44-6291-01)

$

$

Not available

23

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

24

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

25

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

26

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

27

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

28

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0
