30162 - Toro 62" Side-Discharge Mower Deck (SN: 000000001 - 009999999) (1990) 62" SIDE DISCHARGE DECK Parts Diagram

62" Side-Discharge Mower Deck

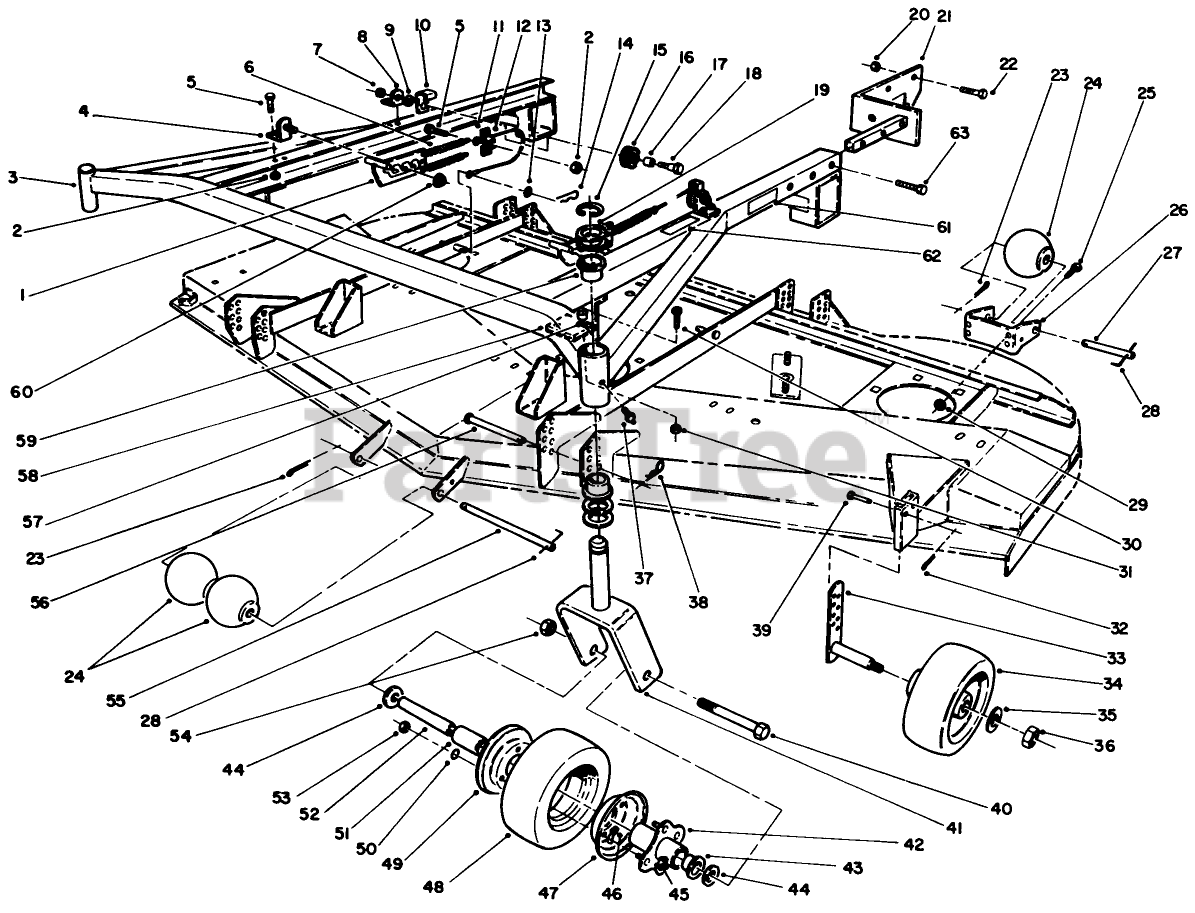

62" SIDE DISCHARGE DECK Parts Diagram

  • Title

1

Toro 56-3330

Control-Tension
(Superseded to 56-3330-01)

$87.99

$

Usually ships in 3-6 days

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

3

Toro 76-3151

Carrier Frame Assembly (Incl. Decal 14-1529)
(Superseded to 16-2009)

$

$

Not available

4

Toro 56-3340

Bracket-Control
(Superseded to 56-3340-01)

$

$

Not available

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 56-2770

EXTENSION SPRING

$32.99

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

8

Toro 56-3360

Bracket-Pulley
(Superseded to 56-3360-01)

$

$

Not available

9

Toro 252-98

THRUST WASHER

$

$

Not available

10

Toro 56-2780

CABLE RETAINER

$

$

Not available

11

Toro 59-5390

SPRING BRACKET

$

$

Not available

12

Toro 56-3350

CABLE

$

$

Not available

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

15

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

16

Toro 3-8775

Pulley Assembly (Incl. Ref.#17)

$

$

Not available

17

Toro 256-159

BUSHING

$

$

Not available

18

Toro 59-5400

BOLT-SHOULDER

$62.99

$

Usually ships in 3-6 days

0

19

Toro 3-6787

Washer-Thrust

$

$

Not available

20

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

21

Toro 74-1220

Lift Arm Assembly L.H.

$

$

Not available

Toro 74-1210

Lift Arrn Assembly R.H.
(Superseded to 16-2009)

Note: Not Illustrated.

$

$

Not available

22

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

23

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

24

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 57-0580

Bracket-Roller
(Superseded to 57-0580-01)

$70.99

$

Usually ships in 3-6 days

0

27

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

28

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

29

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

30

Toro 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

31

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

33

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

34

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

36

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

37

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

38

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

39

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

40

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

41

Toro 74-0250

Castor Fork
(Superseded to 74-0250-01)

$

$

Not available

42

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

43

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

44

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

46

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

47

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

48

Toro 68-8960

TIRE

$64.99

$

In Stock, only 1 left!

0

49

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

50

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

51

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

52

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

53

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

54

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

55

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

56

Toro 235-55

Pin-Clevis
(Superseded to 283-55)

$11.99

$

In Stock, Qty 5

0

57

Toro 40-9520

SPACER

$0.99

$

Usually ships in 3-6 days

0

58

Toro 40-0330

CUSHION-RUBBER

$10.99

$

Usually ships in 3-6 days

0

59

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 10

0

60

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

61

Toro 68-3860

Decal-H.O.C.

$

$

Currently unavailable

62

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

63

Toro 3325-32

Screw-Hex. Hd. Cap
(Superseded to 325-32)

$7.99

$

Usually ships in 3-6 days

0
