30161 - Toro 36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) DECK ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

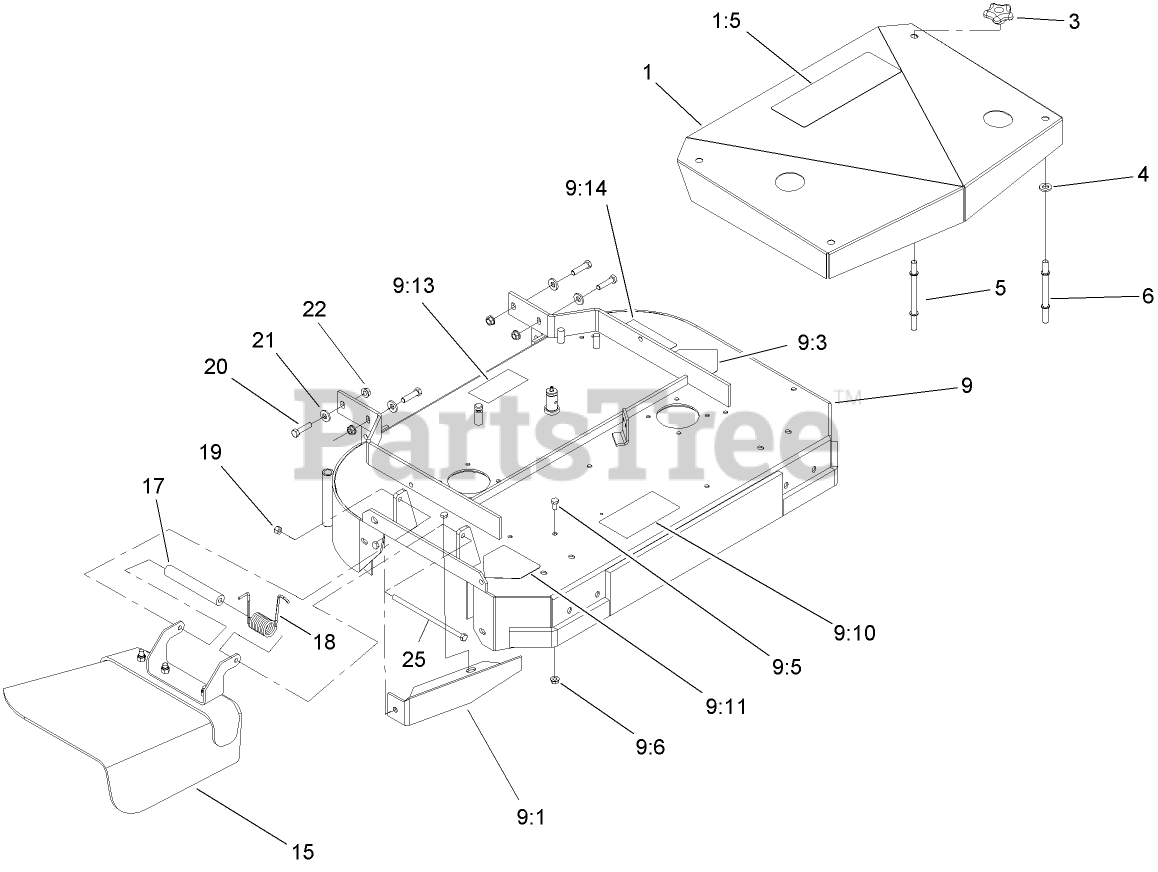

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-304258

BELT SHIELD ASM

$

$

Not available

1:5

Toro 106-0711

DECAL

$

$

Not available

3

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 15

0

4

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

5

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

6

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

9

Toro 107-4214

DECK ASM

$

$

Not available

9:1

Toro 1-302189-01

BAFFLE-DOGLEG

$49.99

$

Usually ships in 3-6 days

0

9:3

Toro 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

9:5

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

9:6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

9:11

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

9:13

Toro 98-3296

DECAL-ROUTING, BELT

$22.99

$

Usually ships in 3-6 days

0

9:14

Toro 98-5130

DECAL-TORQUE, BOLT

$31.99

$

Usually ships in 3-6 days

0

15

Toro 107-4140

DEFLECTOR ASM

$363.99

$

Usually ships in 3-6 days

0

17

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

18

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0
