30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 200000001 - 200999999) (2000) TRANSMISSION & IDLER PULLEY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

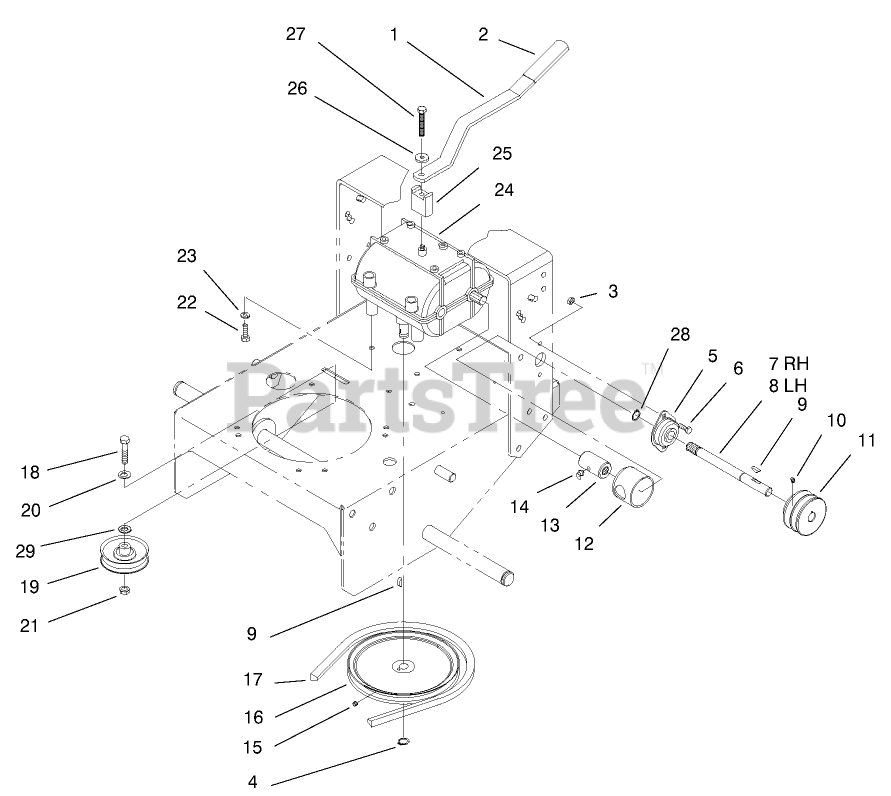

TRANSMISSION & IDLER PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 74-0320-01

LEVER-SHIFT

$43.99

$

Usually ships in 3-6 days

0

2

$15.99

$

Usually ships in 3-6 days

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

5

Toro 51-4270

BEARING-EXTERNAL SHAFT

$43.99

$

In Stock, only 4 left!

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 98-0788

SHAFT-EXTENSION, RH

$66.99

$

In Stock, only 3 left!

0

8

Toro 98-0787

SHAFT-EXTENSION, LH

$66.99

$

In Stock, only 3 left!

0

9

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 7

0

10

Toro 3245-3

SCREW-SET, HS

$3.49

$

In Stock, only 4 left!

0

11

Toro 74-0480

Pulley-Drive
(Superseded to 105-2698)

$55.99

$

In Stock, only 3 left!

0

12

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

13

Toro 98-0789

COUPLER
(Superseded to 1-323680)

$41.99

$

In Stock, only 2 left!

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

16

Toro 51-4190

PULLEY-DRIVEN

$79.99

$

In Stock, only 3 left!

0

17

Toro 26-9671

BELT V

$35.99

$

In Stock, only 2 left!

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 51-4810

PULLEY-IDLER

$41.99

$

Usually ships in 3-6 days

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-0791

TRANSMISSION

$

$

Not available

25

Toro 72-2190

MOUNT-LEVER, SHIFT

$25.99

$

Usually ships in 3-6 days

0

26

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

27

Toro 329-10

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

28

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
