30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 200000001 - 200999999) (2000) BLOWER HOUSING AND BAFFLES Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

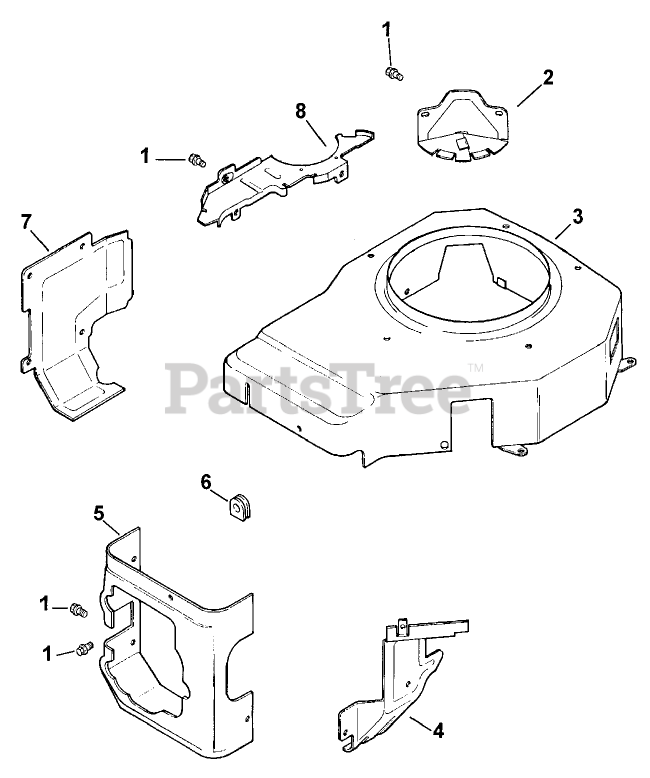

BLOWER HOUSING AND BAFFLES Parts Diagram

  • Title

1

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$4.49

$

In Stock, only 2 left!

0

2

1209629

Cover-Starter

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

3

1202737

Housing-Blower

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

4

1206305

Baffle-Carburetor

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

5

1206308

Baffle-Cyl. Head

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

6

1231303

Grommet-Blower

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

7

1206301

Baffle-Cylinder

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

8

1214607

Plate-Blower Housing

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

1213366

Decal-Horsepower

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

1213366

Decal-Horsepower

Note: Not illustrated

$

$

Not available
