30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 099001180 - 099999999) (1999) WHEEL AND TIRE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

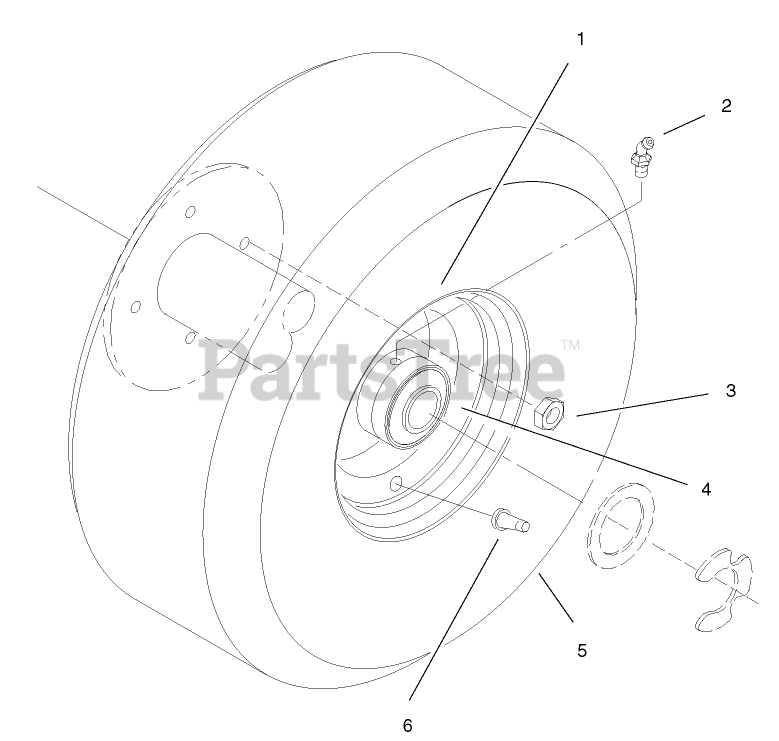

WHEEL AND TIRE ASSEMBLY Parts Diagram

  • Title
1

Toro 242-80

WHEEL AND HUB ASM

$

$

Not available

2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 92-1746

BEARING-BALL

$104.99

$

Usually ships in 3-6 days

0

5

$

$

Not available

6

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0
