30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 099001180 - 099999999) (1999) FUEL SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

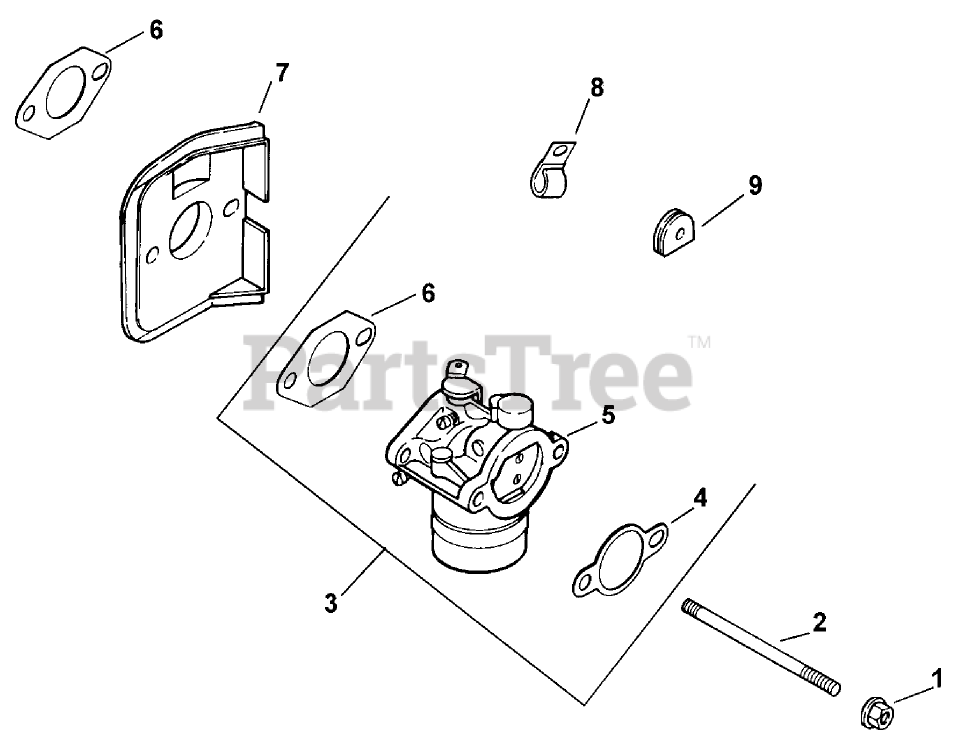

FUEL SYSTEM Parts Diagram

  • Title

1

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$4.49

$

In Stock, Qty 6

0

2

Kohler M-0629122

Stud
(Superseded to M-629122)

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$5.99

$

Usually ships in 2-5 days

0

3

1285378

Kit-Carburetor w/Gaskets

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

4

1204102

Gasket-Air Cleaner

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

5

1205378

Carburetor ASM

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

6

1204101

Gasket-Carburetor

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

7

1226504

Deflector-Heat

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

8

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$5.49

$

In Stock, only 4 left!

0

9

1231301

Grommet

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

1275702

Kit-Float

Note: Not illustrated

$

$

Not available

1275702

Kit-Float

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

1275708

Kit-Choke Repair

Note: Not illustrated

$

$

Not available

1275708

Kit-Choke Repair

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Kohler Engine Model CV13T SP 21524-Obtain parts from kohler

$

$

Not available
