30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 099000001 - 099001179) (1999) CYLINDER HEAD, VALVES AND BREATHER Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

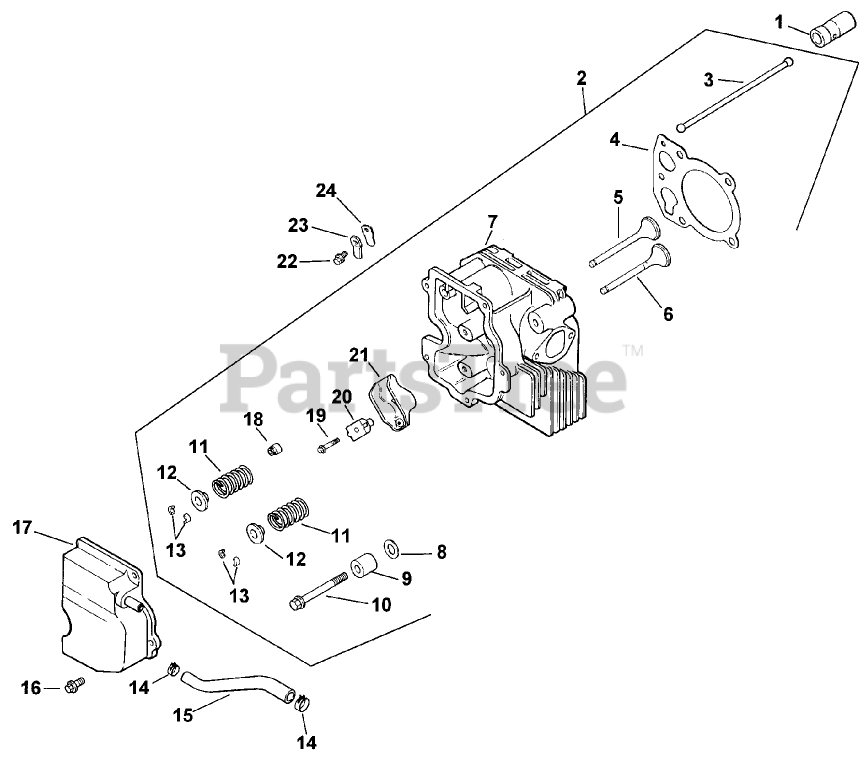

CYLINDER HEAD, VALVES AND BREATHER Parts Diagram

  • Title

1

1235102

Lifter-Valve

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

2

1275581

gasket)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

3

1241101

Rod-Push

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

4

1204108

Gasket-Cylinder Head

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

5

1201701

Valve-Intake STD

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

5

1201702

Valve-Intake .25

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

6

1201601

Valve-Exhaust STD

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

6

1201602

Valve-Exhaust .25

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

7

1231819

Head-Cylinder

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

8

1246805

Washer

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

9

1211213

Spacer-Head Bolt

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

10

1208615

Screw M10x1.5x80

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

11

1208901

Spring-Valve

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

12

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$8.49

$

In Stock, Qty 5

0

13

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$5.99

$

In Stock, only 2 left!

0

14

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$4.99

$

In Stock, only 2 left!

0

15

1232603

Hose-Breather

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

16

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.49

$

In Stock, only 1 left!

0

17

1209607

Cover-Valve w/Nipple

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

18

2402305

Seal-Valve Spring

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

19

Kohler M-0640034

Screw

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

20

1259903

Pivot-Rocker Arm

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

21

Kohler 25 186 01

Arm-Rocker
(Superseded to 25 186 01-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$12.99

$

In Stock, only 2 left!

0

22

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$4.49

$

In Stock, only 2 left!

0

23

Kohler 12 018 01

Retainer-Reed
(Superseded to 66 018 04-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$4.99

$

In Stock, Qty 6

0

24

1240202

Reed-Breather

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available
