30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 089000001 - 089999999) (1998) STARTER SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

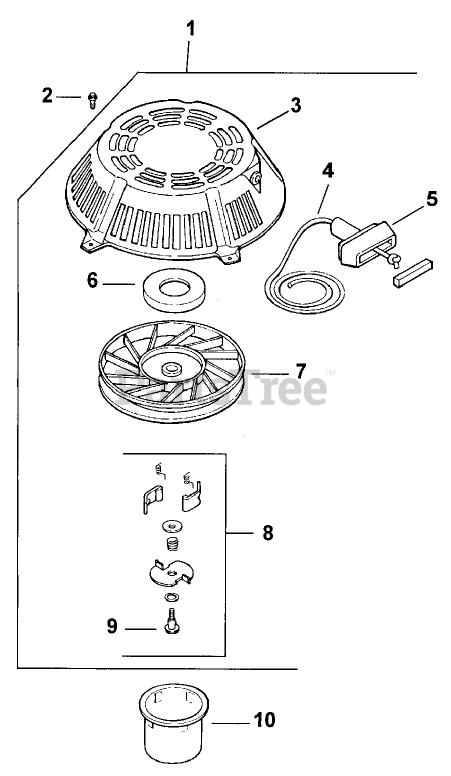

STARTER SYSTEM Parts Diagram

  • Title

1

1216501

Starter Incl 3-9

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

2

Toro M-0545010

Screw

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Currently unavailable

3

1208101

Housing-Starter

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

4

1216001

Rope-Starter

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

5

2516601

Handle-Recoil

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

6

1208906

Spring & Keeper

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

7

1209301

Pulley

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

8

1275706

Kit-Dog Replacement (incl. Ref.#9)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

9

4108609

Screw-Posidrive

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

10

1510901

Cup-Driver

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

1211307

Decal-Starting

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

1211307

Decal-Starting

Note: Not illustrated

$

$

Not available
