30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079500101 - 079999999) (1997) EXHAUST-ENGINE KOHLER MODEL NO. CV131 SPEC 21524 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

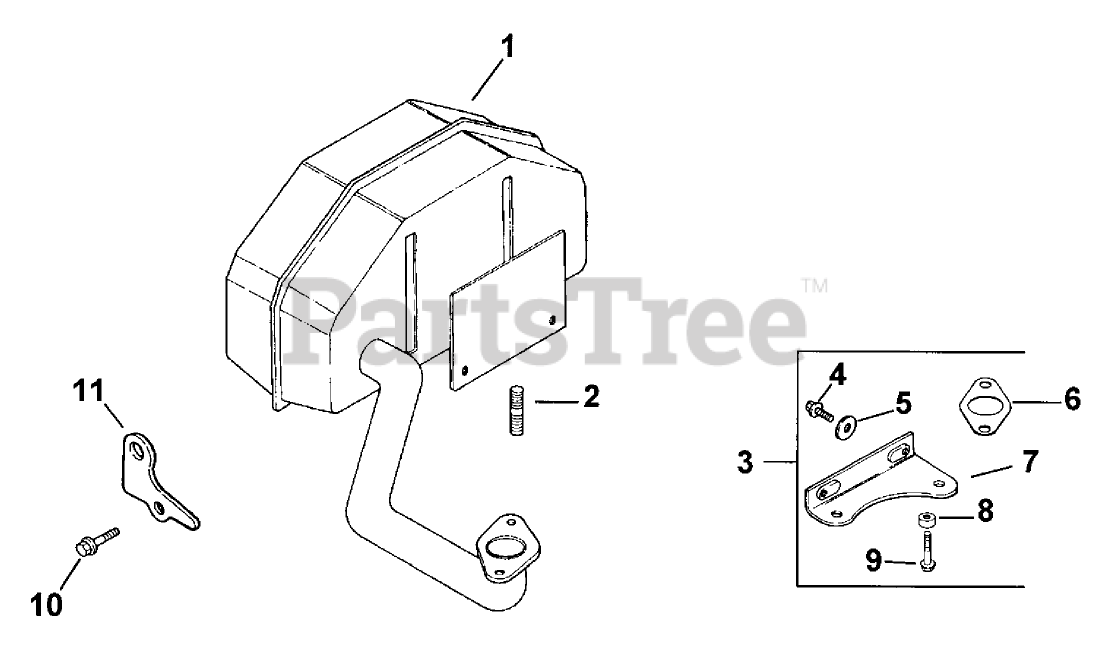

EXHAUST-ENGINE KOHLER MODEL NO. CV131 SPEC 21524 Parts Diagram

  • Title

1

1206803

Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler M-0829033

Stud
(Superseded to M-829033)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 3 left!

0

3

1275530

Kit-Bracket (Incl. Ref.#4-9)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

5

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 1 left!

0

6

1204103

Gasket-Exhaust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1212655

Bracket-Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1246801

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

1208613

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

11

1244506

Strap-Lifting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
