30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079500101 - 079999999) (1997) ENGINES CONTROLS-ENGINE KOHLER MODEL NO. CV131 SPEC 21524 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

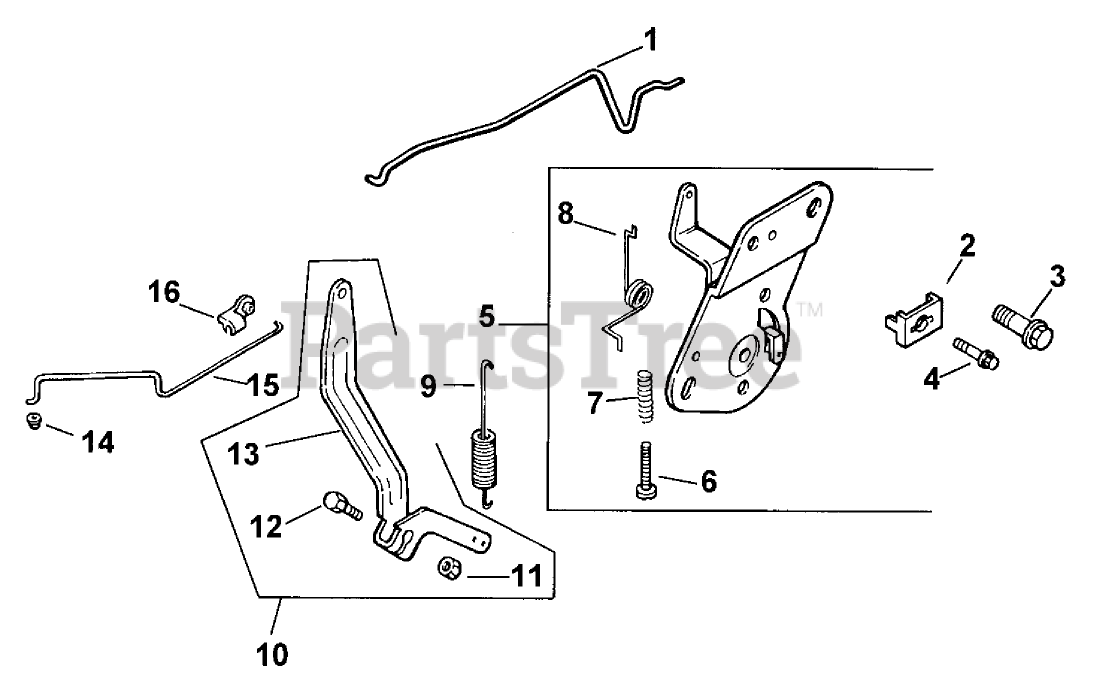

ENGINES CONTROLS-ENGINE KOHLER MODEL NO. CV131 SPEC 21524 Parts Diagram

  • Title
1

1207907

Linkage Choke

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

3

Kohler M-0664020

Screw Socket

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 15

0

5

1253601

Control-Speed

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler SM-0443025

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1208911

Spring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1208923

Spring Choke

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

1208919

Spring-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1275583

Kit-Governor Lever (Incl. Ref.#11-13)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

1210007

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

5221104

Bolt

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1209026

Lever-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 19

0

15

1207901

Linkage-Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 13

0
