30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079000001 - 079510000) (1997) CYLINDER HEAD, VALVES AND BREATHER Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

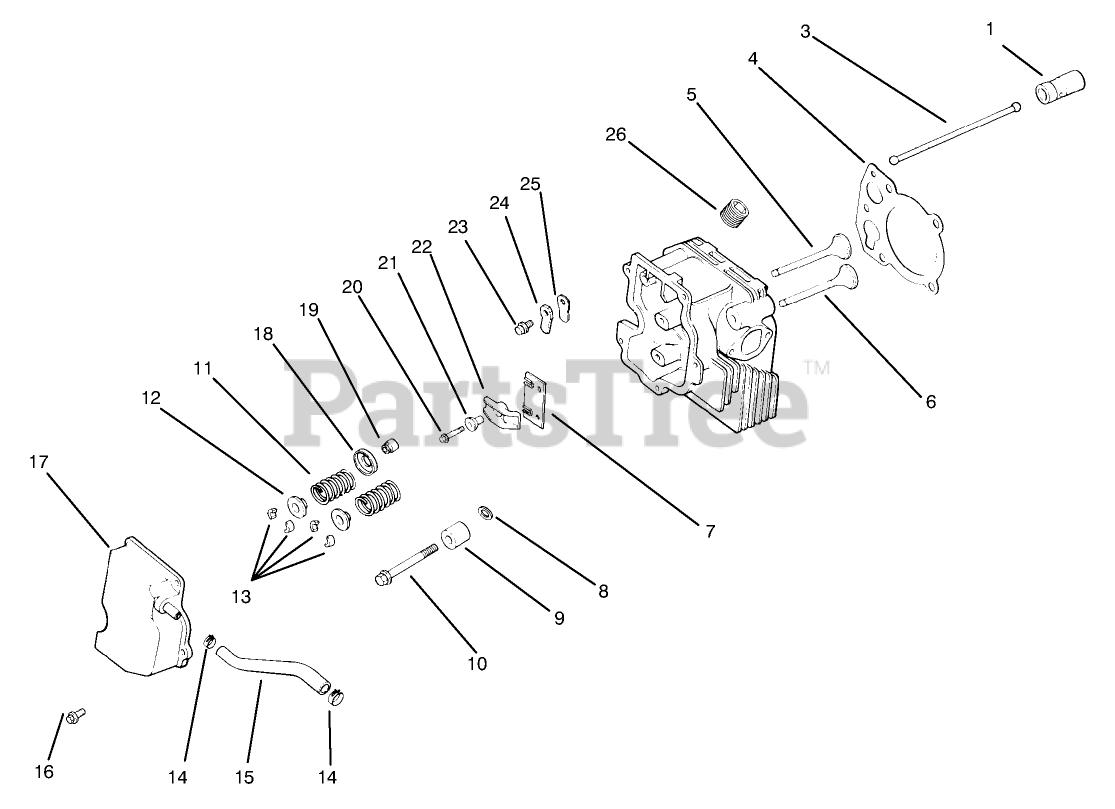

CYLINDER HEAD, VALVES AND BREATHER Parts Diagram

  • Title

1

1235101

Lifter-Valve

$

$

Not available

3

1241101

Rod-Push

$

$

Not available

4

1204108

Gasket-Cylinder Head

$

$

Not available

5

1201701

Valve-Intake STD

$

$

Not available

5

1201702

Valve-Intake .25

$

$

Not available

6

1201601

Valve-Exhaust STD

$

$

Not available

6

1201602

Valve-Exhaust .25

$

$

Not available

7

1214613

Plate-Guide

$

$

Not available

8

1246805

Washer

$

$

Not available

9

1211213

Spacer-Head Bolt

$

$

Not available

10

1208615

Screw M10x1.5x80

$

$

Not available

11

1208901

Spring-Valve

$

$

Not available

12

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

13

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

$5.99

$

In Stock, only 2 left!

0

14

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

15

1232603

Hose-Breather

$

$

Not available

16

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

17

1209607

Cover-Valve w/Nipple

$

$

Not available

18

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

19

2402305

Seal-Valve Spring

$

$

Not available

20

Kohler M-0640034

Screw

$

$

Not available

21

2419401

Pivot-Rocker Arm

$

$

Not available

22

2418603

Arm-Rocker

$

$

Not available

23

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

24

Kohler 12 018 01

Retainer-Reed
(Superseded to 66 018 04-S)

$4.99

$

In Stock, Qty 6

0

25

1240202

Reed-Breather

$

$

Not available

26

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

1275558

Kit-Cylinder Head

$

$

Not available
