30157 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 069000001 - 690001407) (1996) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

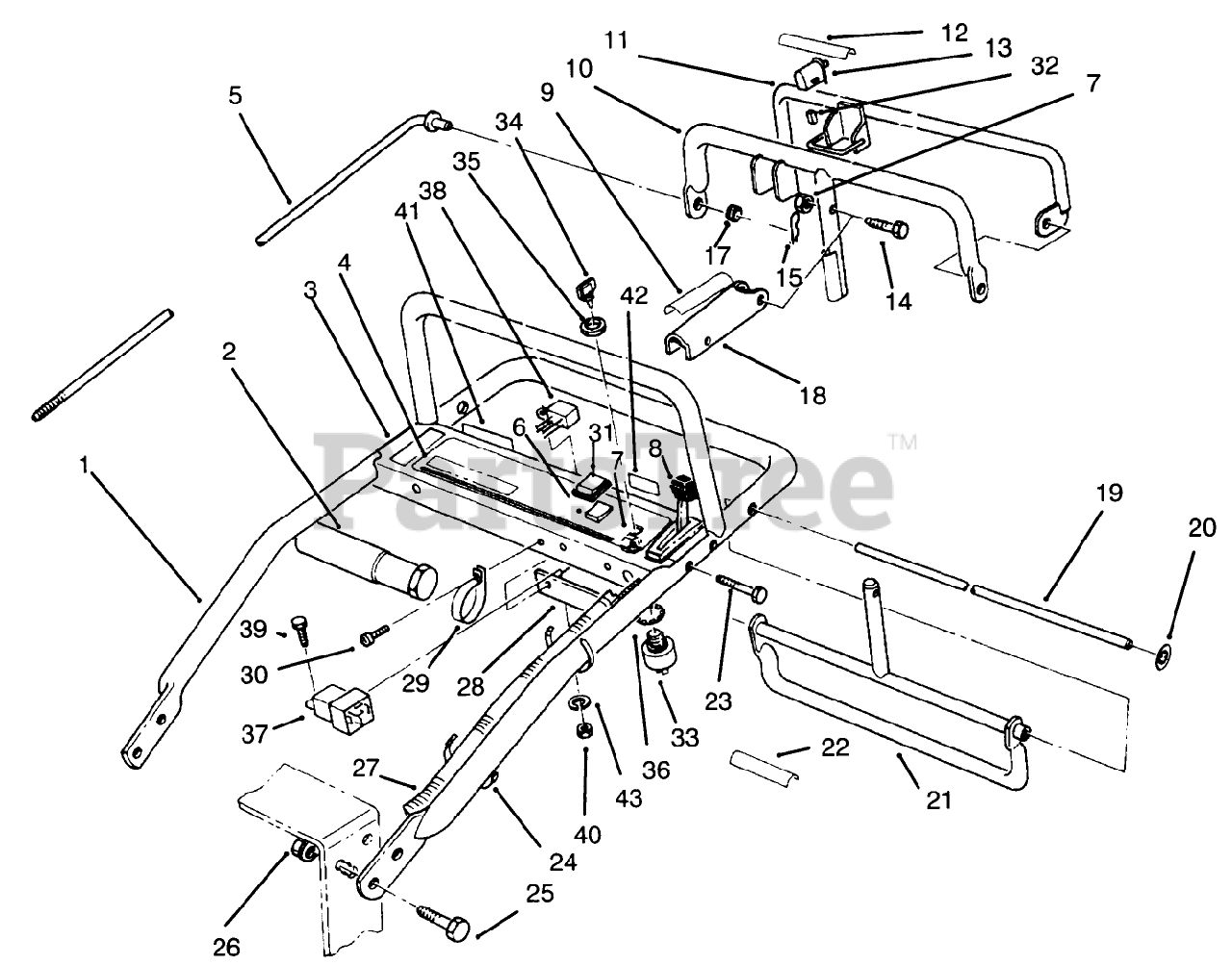

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 67-6440

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

2

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

3

Toro 82-2180

Panel-Control
(Superseded to 82-2180-03)

$

$

Not available

4

Toro 82-7730

DECAL-CONTROL PANEL

$

$

Not available

5

Toro 82-7632

ROD-CONTROL

$73.99

$

In Stock, only 2 left!

0

6

Toro 82-2300

SWITCH
(Superseded to 121-8032)

$55.99

$

In Stock, only 3 left!

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 74-0630

CONTROL-THROTTLE

$126.99

$

Usually ships in 3-6 days

0

9

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

10

Toro 82-7690

Bar
(Superseded to 82-7690-03)

$281.99

$

Usually ships in 3-6 days

0

11

Toro 82-7680

Bail
(Superseded to 82-7680-03)

$152.99

$

Usually ships in 3-6 days

0

12

Toro 82-2290

DECAL

$12.99

$

Usually ships in 3-6 days

0

13

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

14

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

15

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

18

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$38.99

$

In Stock, only 1 left!

0

19

Toro 74-0470

PIVOT ROD

$53.99

$

Usually ships in 3-6 days

0

20

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.49

$

In Stock, Qty 7

0

21

Toro 74-0380

Control Pivot
(Superseded to 74-0380-03)

$

$

Not available

22

Toro 82-2280

DECAL

$10.99

$

In Stock, only 1 left!

0

23

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 82-2260

WIRE HARNESS

$

$

Not available

28

Toro 57-5811

Panel-Bottom
(Superseded to 93-1187-03)

$49.99

$

Usually ships in 3-6 days

0

29

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

30

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

31

Toro 82-3820

BOOT-SWITCH

$

$

Not available

32

Toro 218-595

CONNECTOR-BODY

$

$

Not available

33

Toro 29-5560

Switch-On/Off (Incl. Ref. #34-36)

$17.99

$

In Stock, only 2 left!

0

34

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

35

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

36

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

37

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

38

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available

39

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

41

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

42

Toro 65-3090

DECAL-INSTRUCTION

$

$

Not available

43

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0
