30157 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 069000001 - 690001407) (1996) CRANKCASE Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

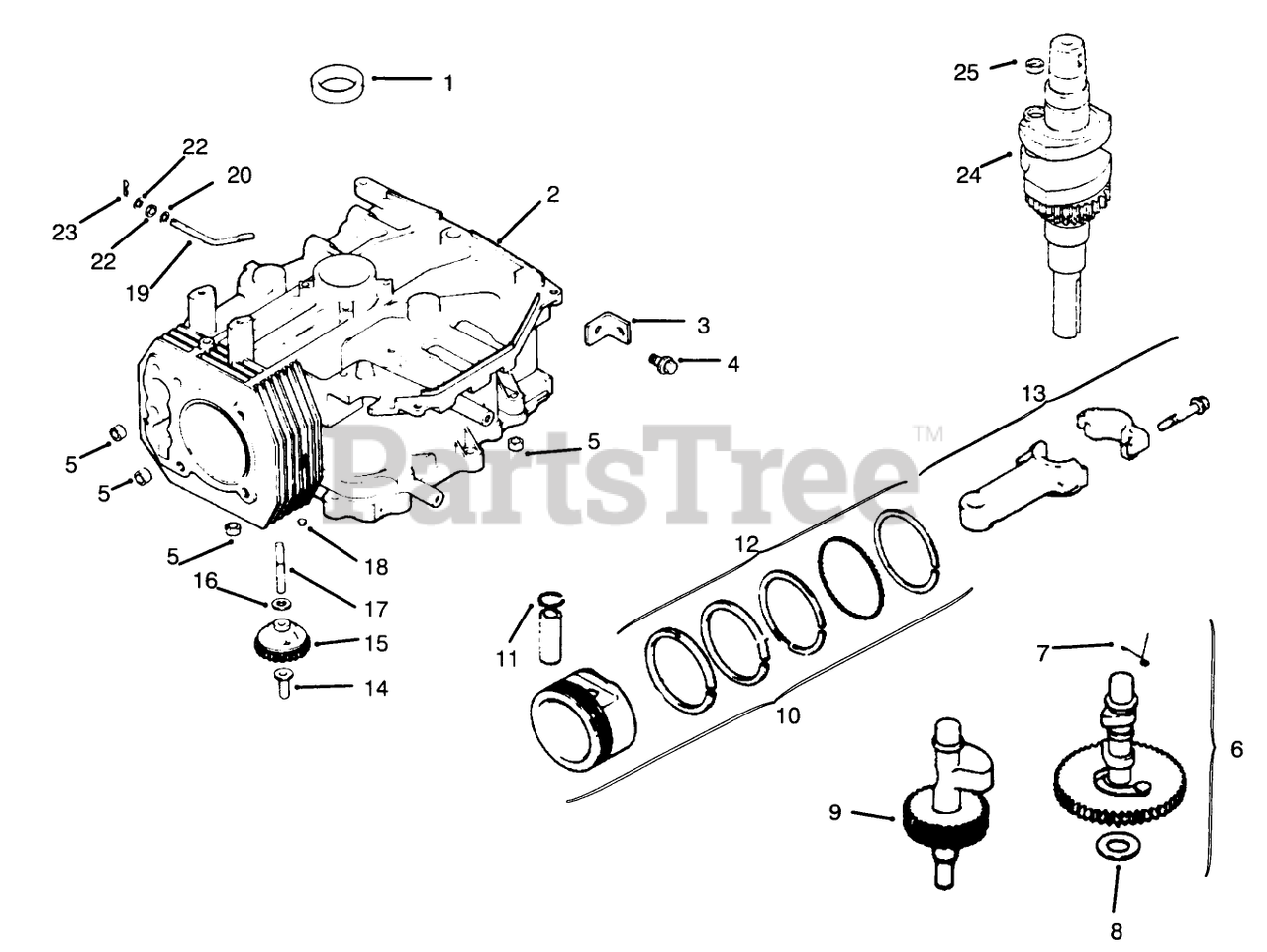

CRANKCASE Parts Diagram

  • Title

1

1203203

Seal-Crankshaft

$

$

Not available

2

1252222

Shortblock

$

$

Not available

3

1244502

Strap-Lifting

$

$

Not available

4

Kohler M-0839025

Screw
(Superseded to M-839025)

$2.49

$

Usually ships in 2-5 days

0

5

1238003

Pin-Dowel

$

$

Not available

6

1275550

Camshaft Assembly

$

$

Not available

7

1208918

Spring-Actuating

$

$

Not available

8

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Not illustrated

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Not illustrated

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Not illustrated

$4.49

$

Usually ships in 2-5 days

0

9

1214419

Shaft Balance

$

$

Not available

10

1284701

Set Piston w/Ring STD

$

$

Not available

1284702

Set-Piston w/Ring .25

Note: Not illustrated

$

$

Not available

1284703

Set-Piston w/Ring .50

Note: Not illustrated

$

$

Not available

11

1201802

Retainer-Piston Pin

$

$

Not available

12

1210801

Ring Set STD

$

$

Not available

1210802

Ring Set .25

Note: Not illustrated

$

$

Not available

1210803

Ring Set .50

Note: Not illustrated

$

$

Not available

13

1206705

Rod Connecting STD

$

$

Not available

1206706

Rod Connecting .25

Note: Not illustrated

$

$

Not available

14

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

$3.49

$

In Stock, Qty 10

0

15

1204305

Gear, governor

$

$

Not available

16

Kohler M-0631005

Washer
(Superseded to M-631005)

$2.49

$

In Stock, only 2 left!

0

17

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

$4.49

$

In Stock, Qty 8

0

18

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

$4.99

$

In Stock, only 2 left!

0

19

1214401

Shaft-Governor Cross

$

$

Not available

20

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

21

1203201

Seal-Cross Shaft

$

$

Not available

22

Kohler SM-0631015

Washer

$

$

Not available

23

1238004

Pin-Hitch

$

$

Not available

24

1201429

Crankshaft ASM

$

$

Not available

25

1213901

Plug-Cup

$

$

Not available
