30157 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) AXLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

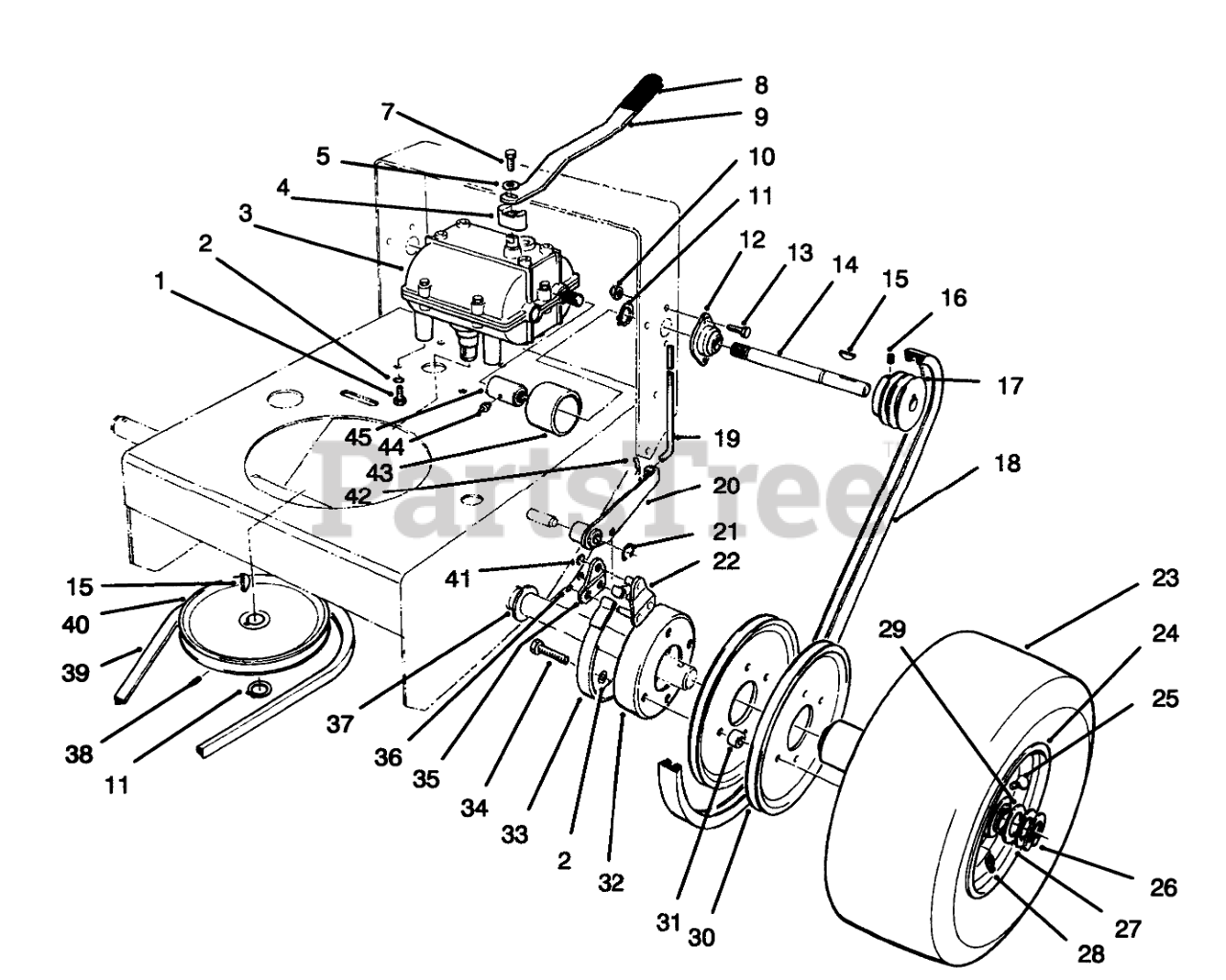

AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 74-0610

TRANSMISSION

$

$

Not available

4

Toro 72-2190

MOUNT-LEVER, SHIFT

$29.99

$

Usually ships in 3-6 days

0

5

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

7

Toro 329-10

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

8

Toro 47-1970

GRIP

$15.99

$

Usually ships in 3-6 days

0

9

Toro 74-0320

Lever-Shift
(Superseded to 74-0320-01)

$48.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

11

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

12

Toro 51-4270

BEARING-EXTERNAL SHAFT

$50.99

$

In Stock, only 4 left!

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 51-4240

SHAFT-EXTENSION, RH

$72.99

$

In Stock, only 2 left!

0

Toro 51-4250

SHAFT-EXTENSION, LH

Note: Not illustrated

$64.99

$

In Stock, only 1 left!

0

15

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

16

Toro 3245-3

SCREW-SET, HS

$3.49

$

In Stock, only 4 left!

0

17

Toro 74-0480

Pulley-Drive
(Superseded to 105-2698)

$55.99

$

In Stock, only 3 left!

0

18

Toro 51-4291

V-BELT

$94.99

$

In Stock, only 3 left!

0

19

Toro 51-4580

ROD-BRAKE

$59.99

$

Usually ships in 3-6 days

0

20

Toro 67-6420

Arm-Brake LH
(Superseded to 67-6420-01)

$

$

Not available

Toro 67-6400

Arm-Brake RH
(Superseded to 67-6400-01)

Note: Not illustrated

$

$

Not available

21

Toro 32151-40

RING-RETAINING

$7.49

$

In Stock, Qty 6

0

22

Toro 51-4650

LINK-Brake
(Superseded to 51-4650-01)

$74.99

$

Usually ships in 3-6 days

0

23

Toro 231-94

TIRE-FRONT

$99.99

$

In Stock, Qty 5

0

24

Toro 93-1181

WHEEL ASM

$

$

Not available

25

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

26

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

27

Toro 92-1746

BEARING-BALL

$104.99

$

Usually ships in 3-6 days

0

28

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

29

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, only 1 left!

0

30

Toro 51-4160

Pulley-Wheel
(Superseded to 51-4160-03)

$64.99

$

In Stock, only 2 left!

0

31

Toro 51-4170

SPACER-PULLEY

$12.99

$

Usually ships in 3-6 days

0

32

Toro 51-4180

Drum-Brake
(Superseded to 51-4180-03)

$74.99

$

Usually ships in 3-6 days

0

33

Toro 51-4700

BAND-BRAKE

$78.99

$

In Stock, Qty 10

0

34

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 51-4660

Plate-Link
(Superseded to 51-4660-01)

$36.99

$

Usually ships in 3-6 days

0

36

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, only 2 left!

0

37

Toro 51-4230

WASHER-WHEEL

$12.99

$

In Stock, only 1 left!

0

38

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

39

Toro 26-9670

V-BELT

$28.99

$

In Stock, only 2 left!

0

40

Toro 51-4190

PULLEY-DRIVEN

$90.99

$

In Stock, only 3 left!

0

41

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.49

$

In Stock, Qty 5

0

42

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

43

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

44

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

45

Toro 51-4260

COUPLER

$68.99

$

In Stock, Qty 7

0
