30157 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) FUEL SYSTEM-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

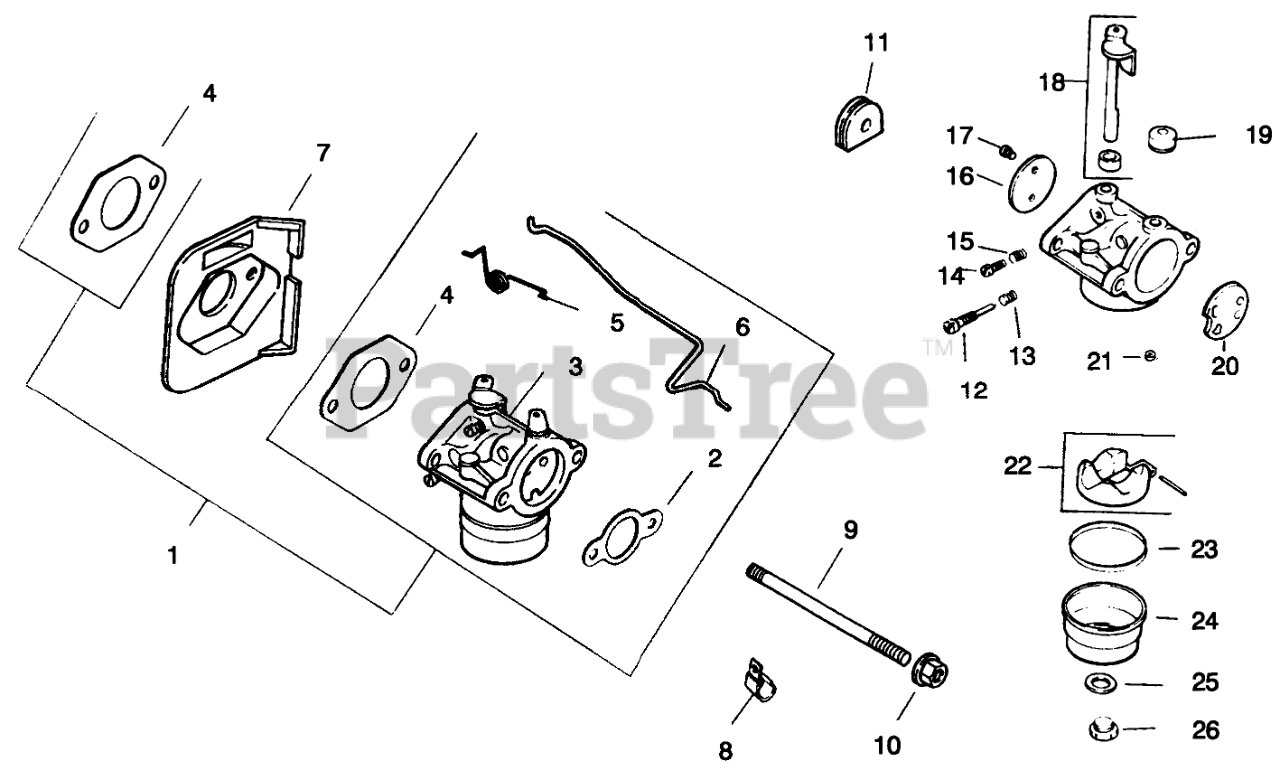

FUEL SYSTEM-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

  • Title
1

Kohler 12 853 22

Kit-Carburetor (Incl Ref. #2-6)
(Superseded to 12 853 45)

$269.99

$

Usually ships in 2-5 days

0

2

1204102

Gasket-Air Cleaner

$

$

Not available

3

Kohler 12 053 28

Carburetor Assembly (Incl Ref. #12-26)

$

$

Not available

4

1204101

Gasket-Carburetor

$

$

Not available

5

1208923

Spring Choke

$

$

Not available

6

1207907

Linkage Choke

$

$

Not available

7

1226501

Deflector-Heat

$

$

Not available

8

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

$5.49

$

In Stock, only 4 left!

0

9

Kohler M-0629122

Stud
(Superseded to M-629122)

$5.99

$

Usually ships in 2-5 days

0

$

$

Not available

11

1231301

Grommet

$

$

Not available

12

Kohler 12 368 03

Needle-Idle
(Superseded to 12 368 03-S)

$

$

Not available

13

1208909

Spring-Idle

$

$

Not available

14

1208604

Screw-Idle

$

$

Not available

15

1208909

Spring-Idle

$

$

Not available

16

1214603

Plate-Choke

$

$

Not available

17

2508627

Screw

$

$

Not available

18

1214409

Shaft-w/Lever & Seal

$

$

Not available

19

1217306

Cap-Choke Lever

$

$

Not available

20

Kohler 12 146 10

Plate-Choke
(Superseded to 12 146 10-S)

$5.49

$

Usually ships in 2-5 days

0

21

1233707

Jet-Main

$

$

Not available

22

1275702

Kit-Float

$

$

Not available

23

1204105

Gasket-Bowl

$

$

Not available

24

1210401

Bowl-Fuel

$

$

Not available

25

1204106

Gasket-Bowl

$

$

Not available

26

1208605

Screw-Bowl

$

$

Not available

1275701

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available

1275536

Kit-High Altitude Jet

Note: Not illustrated

$

$

Not available

Kohler 12 757 11

Kit-Choke Repair
(Superseded to 12 757 11-S)

Note: Not illustrated

$45.99

$

Usually ships in 2-5 days

0
