30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) STARTING SYSTEM-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

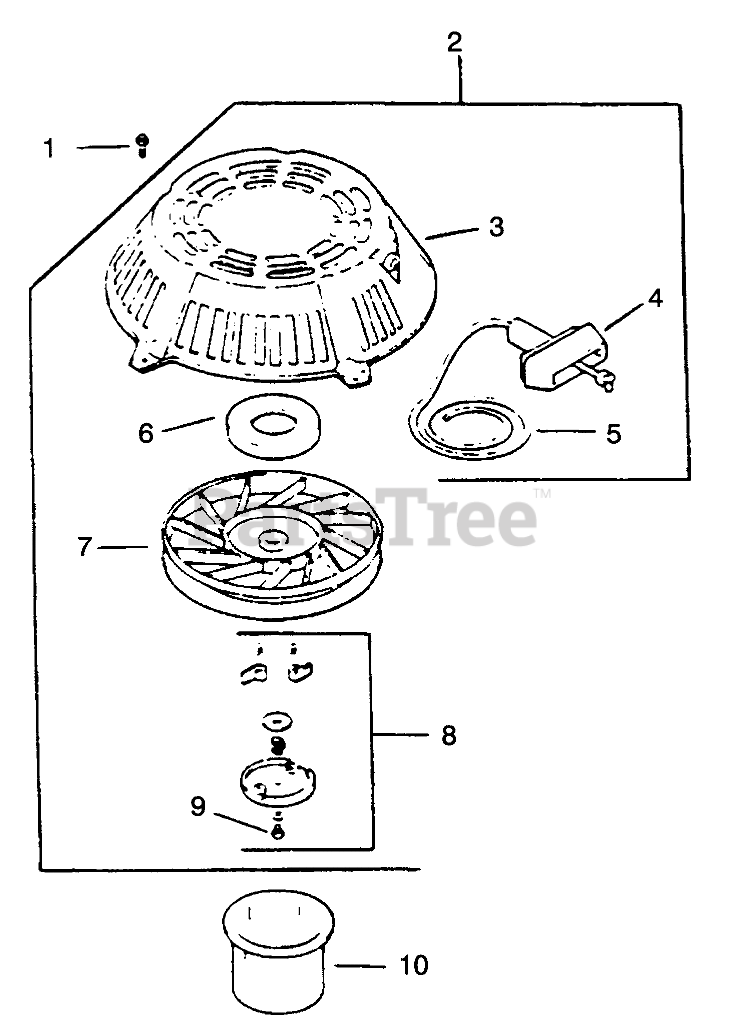

STARTING SYSTEM-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

  • Title
1

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

2

1216501

Starter (Incl. Ref. #3-9)

$

$

Not available

3

1208101

Housing-Starter

$

$

Not available

4

Kohler 234452

Handle
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

5

1216001

Rope-Starter

$

$

Not available

6

1208906

Spring & Keeper

$

$

Not available

7

1209301

Pulley

$

$

Not available

8

1275706

Kit-Dog Replacement (Incl. Ref. #9)

$

$

Not available

9

4108609

Screw-Posidrive

$

$

Not available

10

1510901

Cup-Driver

$

$

Not available

1211307

Decal-Starting

Note: Not Illustrated.

$

$

Not available
