30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) PEERLESS TRANSMISSION. MODEL NO. 700-039 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

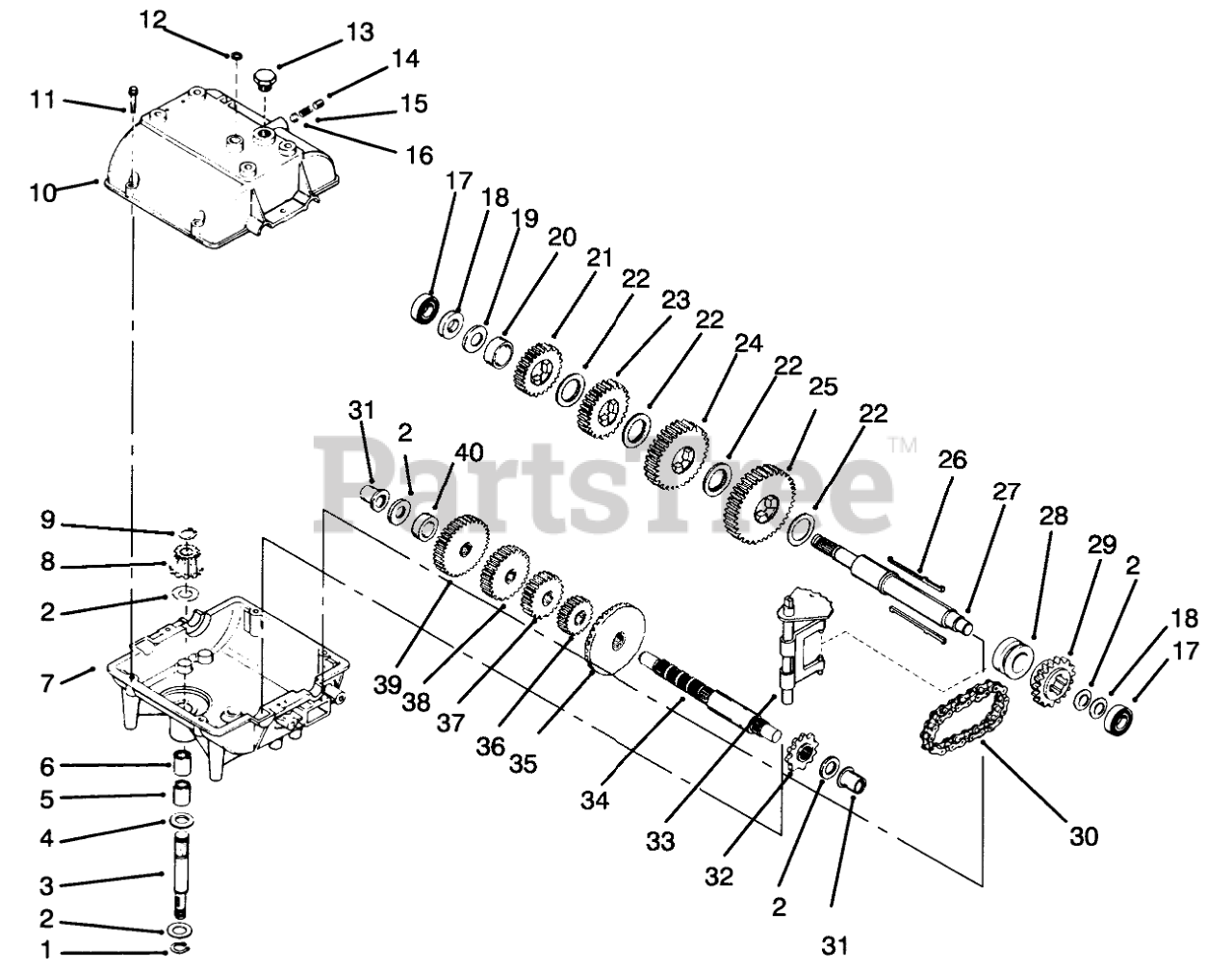

PEERLESS TRANSMISSION. MODEL NO. 700-039 Parts Diagram

  • Title
1

Toro 792035

Ring-Snap

$

$

Currently unavailable

2

Toro 780072

Washer

$

$

Currently unavailable

3

Toro 776135

Shaft-Input

$

$

Currently unavailable

4

Toro 792001

O Ring

$

$

Currently unavailable

5

Toro 780142

Bearing-Needle

$

$

Currently unavailable

6

Toro 780086

Bearing-Needle

$

$

Currently unavailable

7

Toro 770090A

Case-Transmission

$

$

Currently unavailable

8

Toro 778153

Bevel Pinion-Input

$

$

Currently unavailable

9

Toro 788040

Ring-Retainer

$

$

Currently unavailable

10

Toro 772099A

Cover-Transmission

$

$

Currently unavailable

11

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

12

Toro 788069

Cut Seal-Square

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Toro 792078

Screw-Set

$

$

Currently unavailable

15

Toro 792079

Spring

$

$

Currently unavailable

16

Toro 792077

Ball-Steel

$

$

Currently unavailable

17

Toro 780092

Bearing-Ball

$

$

Currently unavailable

18

Toro 780065

Thrust Washer

$

$

Currently unavailable

19

Toro 780139

Washer

$

$

Currently unavailable

20

Toro 786072

Spacer

$

$

Currently unavailable

21

Toro 778123A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

22

Toro 780108

Washer

$

$

Currently unavailable

23

Toro 778250

Gear-Spur 27 Teeth

$

$

Currently unavailable

24

Toro 778124A

Gear-Spur, 30 Teeth

$

$

Currently unavailable

25

Toro 778125

Gear-Spur, 35 Teeth

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Toro 776289A

Shaft-Output/Brake

$

$

Currently unavailable

28

Toro 784266

Collar-Shift

$

$

Currently unavailable

29

Toro 786083

Sprocket-18 Teeth

$

$

Currently unavailable

30

Toro 786081

Chain-Roller #41

$

$

Currently unavailable

31

Toro 780105A

Bushing-Flange

$

$

Currently unavailable

32

Toro 786082

Sprocket-9 Teeth

$

$

Currently unavailable

33

Toro 784267

Rod and Fork ASM

$

$

Currently unavailable

34

Toro 776134

Countershaft

$

$

Currently unavailable

35

Toro 778154

Gear-Bevel, 42 teeth

$

$

Currently unavailable

36

Toro 778136

Gear-Spur 15 Teeth

$

$

Currently unavailable

37

Toro 778126A

Gear-Spur, 20 Teeth

$

$

Currently unavailable

38

Toro 778249

Gear-Spur 23 Teeth

$

$

Currently unavailable

39

Toro 778127A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

40

Toro 786071

Spacer

$

$

Currently unavailable
