30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) ENGINE CONTROL-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

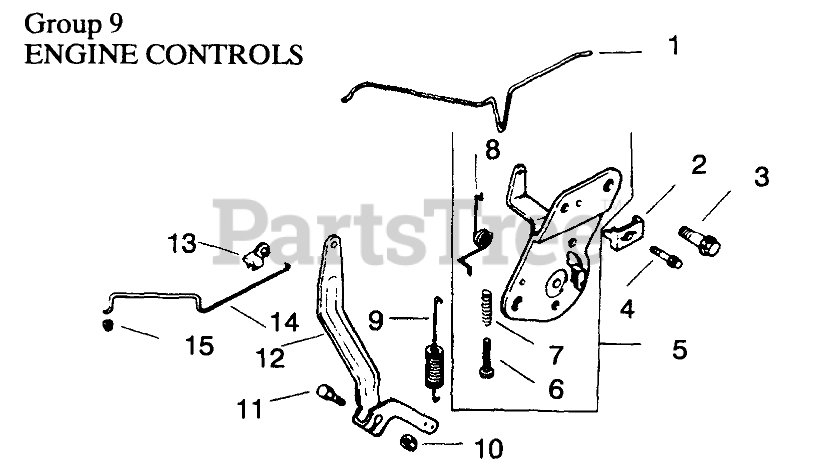

ENGINE CONTROL-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

  • Title

1

1207907

Linkage Choke

$

$

Not available

2

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

3

Kohler SM-0645016

Screw
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 13

0

4

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

5

1253601

Control-Speed (Incl. Ref. #6-8)

$

$

Not available

6

Kohler SM-0443025

Screw

$

$

Not available

7

1208911

Spring

$

$

Not available

8

1208923

Spring Choke

$

$

Not available

9

1208919

Spring-Governor

$

$

Not available

10

Kohler SM-0641060

Nut

$

$

Not available

11

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

12

1209005

Lever-Governor

$

$

Not available

13

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

$5.99

$

In Stock, only 2 left!

0

14

1207901

Linkage-Throttle

$

$

Not available

15

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 18

0
