30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) CYLINDER HEAD/VALVE/BREATHER-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

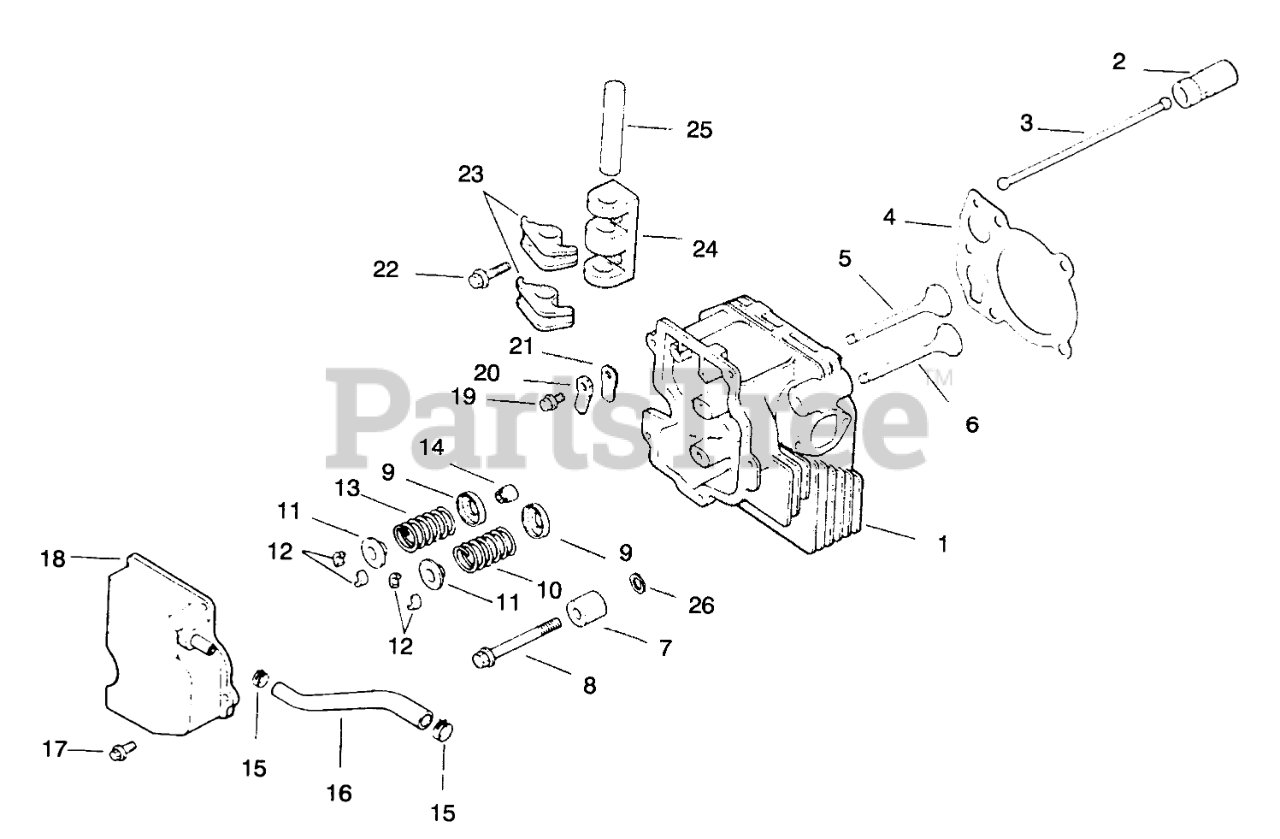

CYLINDER HEAD/VALVE/BREATHER-ENGINE KOHLER MODEL NO. CV12.5T-1254 Parts Diagram

  • Title
1

Kohler 12 318 01

Cylinder Head
(Superseded to 12 755 81-S)

$487.99

$

Usually ships in 2-5 days

0

2

1235101

Lifter-Valve

$

$

Not available

3

1241101

Rod-Push

$

$

Not available

4

1204108

Gasket-Cylinder Head

$

$

Not available

5

1201701

Valve-Intake STD

$

$

Not available

1201702

Valve-Intake .25

$

$

Not available

6

1201601

Valve-Exhaust STD

$

$

Not available

1201602

Valve-Exhaust .25

$

$

Not available

7

1211213

Spacer-Head Bolt

$

$

Not available

8

1208615

Screw M10x1.5x80

$

$

Not available

9

5201801

Retainer-Spring

$

$

Not available

10

1208901

Spring-Valve

$

$

Not available

11

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

$8.49

$

In Stock, only 3 left!

0

12

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

$5.99

$

In Stock, Qty 7

0

13

Kohler 12 089 15

Spring-Valve, Exhaust
(Superseded to 12 089 15-S)

$

$

Not available

14

Kohler 12 032 02

Seal-Valve Stem
(Superseded to 24 032 05)

$11.99

$

In Stock, Qty 20+

0

15

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

16

1232603

Hose-Breather

$

$

Not available

17

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

18

1209607

Cover-Valve w/Nipple

$

$

Not available

19

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

20

Kohler 12 018 01

Retainer-Reed
(Superseded to 66 018 04-S)

$4.99

$

In Stock, only 4 left!

0

21

Kohler 12 402 01

Reed-Breather
(Superseded to 24 402 03)

$3.49

$

In Stock, only 1 left!

0

22

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

23

Kohler 12 186 01

Arm-Rocker
(Superseded to 12 186 01-S)

$

$

Not available

24

Kohler 12 126 05

Bridge-Rocker Arm
(Superseded to 12 126 05-S)

$36.99

$

Usually ships in 2-5 days

0

25

Kohler 12 144 03

Shaft-Rocker Arm
(Superseded to 12 144 03-S)

$

$

Not available

26

1246805

Washer

$

$

Not available

Kohler 12 755 02

Kit-Cylinder Head
(Superseded to 12 755 51)

Note: Not Illustrated.

$487.99

$

Usually ships in 2-5 days

0
