30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 039000001 - 039999999) (1993) IGNITION/ELECTRICAL-ENGINE KOHLER-MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

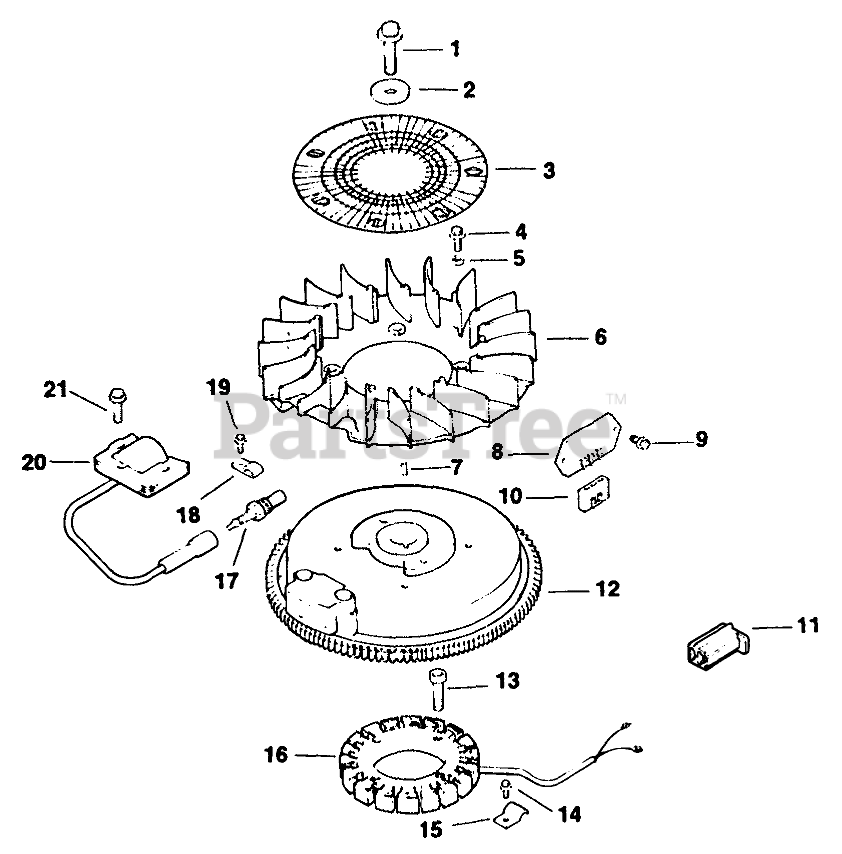

IGNITION/ELECTRICAL-ENGINE KOHLER-MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

  • Title

1

Kohler M-1040045

Screw
(Superseded to M-1040045-S)

$3.49

$

In Stock, Qty 12

0

2

Toro 12_468_03

Washer

$

$

Currently unavailable

3

12_162_03

Screen-Grass

$

$

Not available

4

Kohler M-0651016

Screw
(Superseded to M-651016)

$2.49

$

Usually ships in 2-5 days

0

5

12_112_01

Spacer-Fan

$

$

Not available

6

12_157_02

Fan

$

$

Not available

7

Kohler X-42-15

Key
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 9

0

8

Toro 12_403_01

Rectifier-Unrelated

$

$

Currently unavailable

9

Toro M-065016

Screw

$

$

Currently unavailable

10

Kohler 236602

Connector
(Superseded to 236602-S)

$7.99

$

In Stock, only 1 left!

0

11

41_155_03

Connector

$

$

Not available

12

12_025_08

Flywheel

$

$

Not available

13

Kohler M-0548025

Screw
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

14

Kohler SM-0545010

Screw

$

$

Not available

15

12_154_02

Clip

$

$

Not available

16

Toro 41_085_07

Stator 15 amp.

$

$

Currently unavailable

17

12_132_02

Spark Plug

$

$

Not available

18

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

19

Kohler SM-0545010

Screw

$

$

Not available

20

Toro 12_584_02

Module-Ignition

$

$

Currently unavailable

21

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

Toro 25_518_05

Lead-Black

Note: Not Illustrated.

$

$

Currently unavailable

Toro 25_518_01

Lead-White 14 Gauge

Note: Not Illustrated.

$

$

Currently unavailable
