30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 039000001 - 039999999) (1993) EXHAUST-ENGINE KOHLER-MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

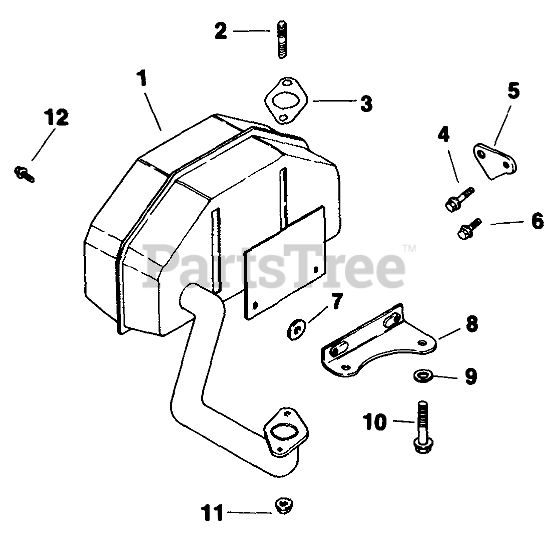

EXHAUST-ENGINE KOHLER-MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

  • Title

1

12_086_03

Muffler

$

$

Not available

2

Kohler M-0829036

Stud
(Superseded to M-0829033)

$3.99

$

In Stock, Qty 14

0

3

12_041_03

Gasket-Exhaust

$

$

Not available

4

Toro SM-0645025

Screw

$

$

Currently unavailable

5

Toro 12_445_01

Strap

$

$

Currently unavailable

6

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

7

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

$3.99

$

In Stock, only 1 left!

0

8

12_126_39

Bracket-Muffler

$

$

Not available

9

Toro 12_468_1

Washer

$

$

Currently unavailable

10

Toro M-0840050

Screw

$

$

Currently unavailable

11

Kohler M-0841080

Nut
(Superseded to M-841080)

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-0650012

Screw
(Superseded to M-650012-S)

$3.49

$

In Stock, only 3 left!

0

12_755_01

Gasket Set

Note: Not Illustrated.

$

$

Not available

Toro 12_755_30

Kit-Bracket

Note: Not Illustrated.

$

$

Currently unavailable
