30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 020000001 - 029999999) (1992) ENGINE CONTROLS-ENGINE-KOHLER MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

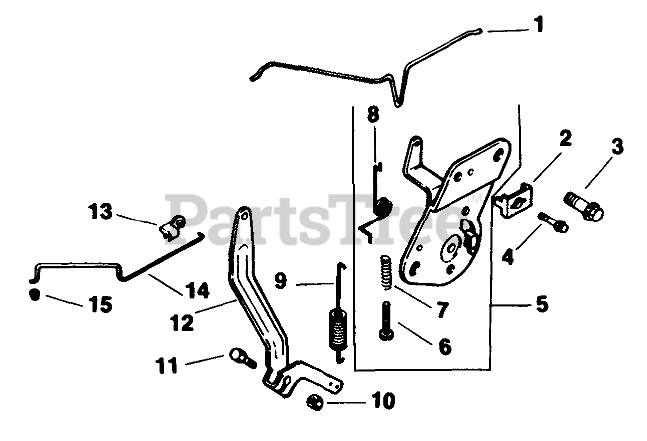

ENGINE CONTROLS-ENGINE-KOHLER MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

  • Title

1

12_079_03

Linkage-Choke

$

$

Not available

2

Toro 12_237_01

Clamp

$

$

Currently unavailable

3

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

4

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

5

Toro 12_536_01

Control-Speed Ass-y (Incl. Ref.#6-8)

$

$

Currently unavailable

6

Kohler SM-0443025

Screw

$

$

Not available

7

12_089_11

Spring

$

$

Not available

8

12_089_04

Spring-Choke

$

$

Not available

9

12_089_19

Spring-Governor

$

$

Not available

10

Kohler SM-0641060

Nut

$

$

Not available

11

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

12

12_090_05

Lever

$

$

Not available

13

Toro 25_158_09

Bushing

$

$

Currently unavailable

14

12_079_01

Linkage-Throttle

$

$

Not available

15

Toro 25_158_08

Bushing

$

$

Currently unavailable
