30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) SULKY KIT MODEL NO. 30122 (OPTIONAL) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

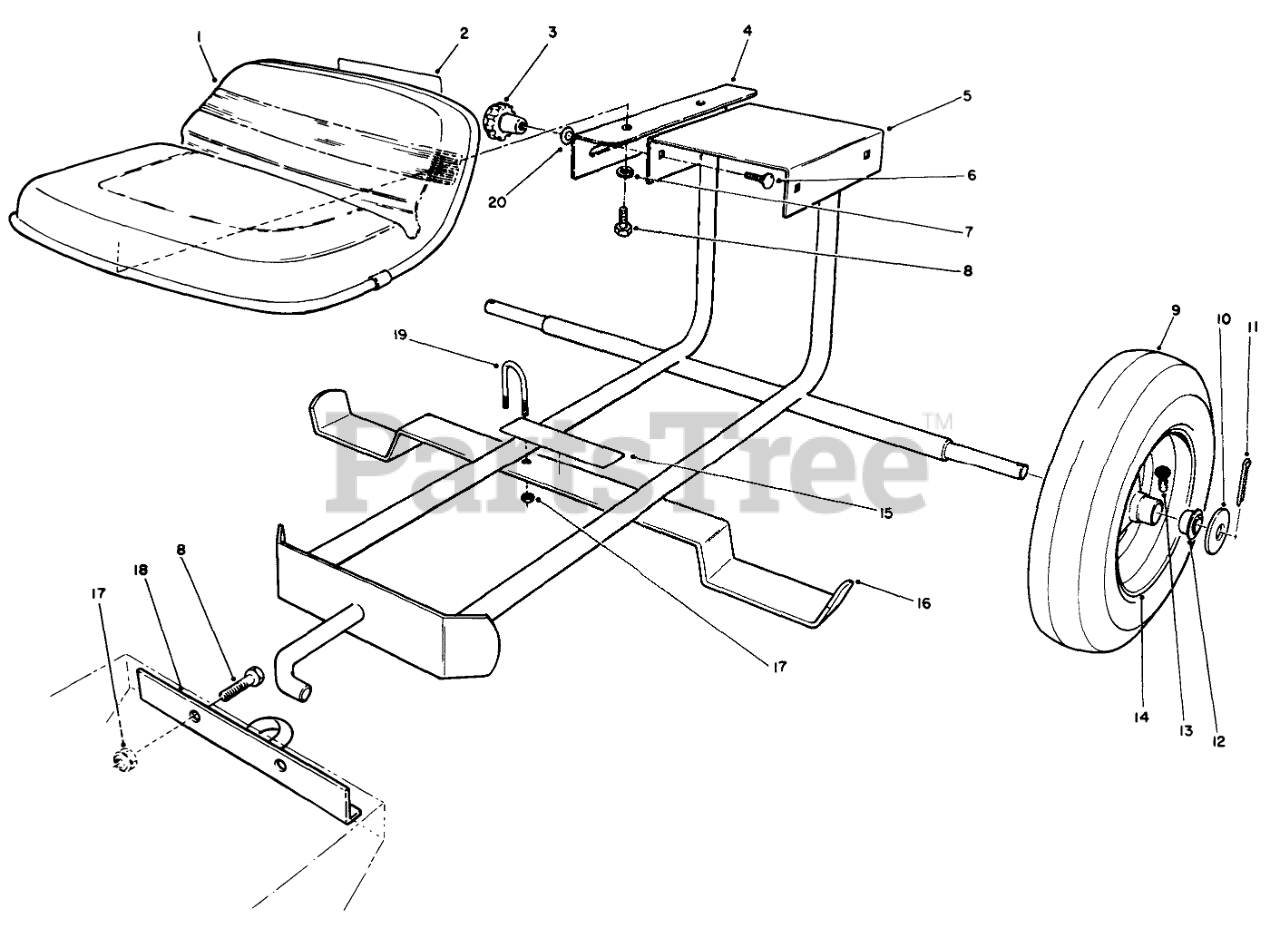

SULKY KIT MODEL NO. 30122 (OPTIONAL) Parts Diagram

  • Title

1

Toro 76-1410

Seat
(Superseded to 108-6878)

$

$

Not available

2

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0

3

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

4

Toro 76-4670

BRACKET R

$

$

Not available

5

Toro 76-4740

Frame Assembly
(Superseded to 76-4740-01)

$

$

Not available

6

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

7

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 55-3720

TIRE

$169.99

$

Usually ships in 3-6 days

0

10

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

11

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

12

Toro 55-3740

BEARING

$

$

Not available

13

Toro 55-3730

VALVE STEM-INNER TUBE

$12.99

$

Usually ships in 3-6 days

0

14

Toro 55-3750

WHEEL

$

$

Not available

15

Toro 55-9900

SULKY DECAL

$

$

Not available

16

Toro 55-9840

SULKY FOOTREST R

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 68-4190

HITCH

$

$

Not available

19

Toro 60-9350

U-BOLT

$16.99

$

Usually ships in 3-6 days

0

20

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0
