30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) STARTING SYSTEM-ENGINE KOHLER MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

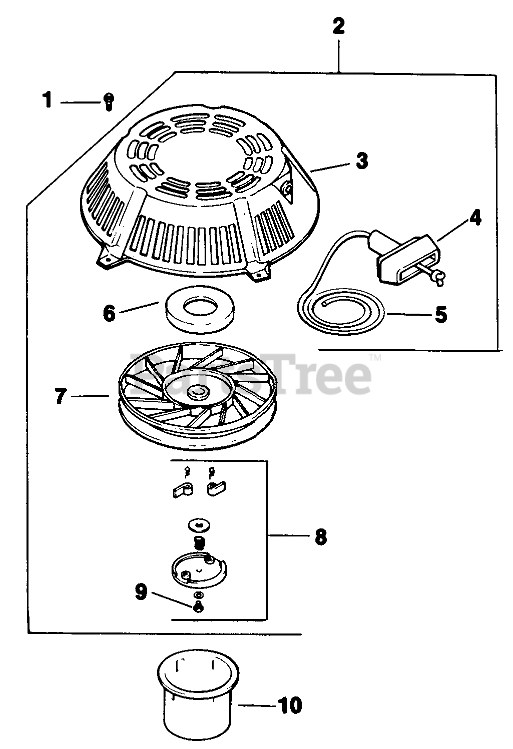

STARTING SYSTEM-ENGINE KOHLER MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

  • Title

$

$

Not available

2

12_165_01

Starter-Retractable Assy. (Incl. Ref. #3-9)

$

$

Not available

3

12_081_01

Housing-Starter

$

$

Not available

4

Kohler 234452

Handle
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

5

12_160_01

Rope

$

$

Not available

6

12_089_06

Spring & Keeper

$

$

Not available

7

12_093_01

Pullet

$

$

Not available

8

Toro 12_757_06

Kit-Pawl (Dog) (Incl. Ref. #9)

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Toro 15_109_01

Cup-Drive

$

$

Currently unavailable
