30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) CRANKCASE-ENGINE KOHLER MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

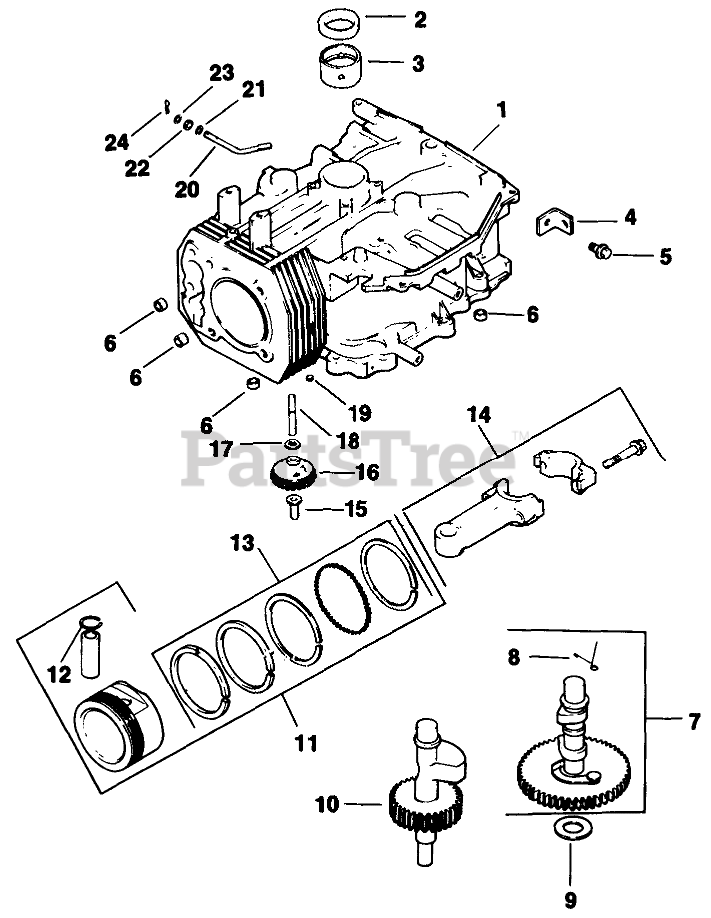

CRANKCASE-ENGINE KOHLER MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

  • Title
1

Block-Cylinder (Use: Short Block 12 522 02)

$

$

Not available

2

12_032_03

Seal-Oil

$

$

Not available

3

12_030_01

Bearing-Crankshaft

$

$

Not available

12_030_02

Bearing-Crankshaft (.25)

$

$

Not available

12_030_03

Bearing-Crankshaft (.50)

$

$

Not available

4

Toro 12_445_02

Strap-Liting

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

7

12_010_02

Camshaft Assembly

$

$

Not available

8

12_089_18

Spring-Actuating

$

$

Not available

9

Toro 12_422_08

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_02

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_06

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft

$

$

Currently unavailable

10

12_144_04

Shaft-Balance

$

$

Not available

11

12_874_01

Piston w/Ring Set (Std.)

$

$

Not available

Toro 12_874_02

Piston w/Ring Set (.25)

$

$

Currently unavailable

12_874_03

Piston w/Ring Set (.50)

$

$

Not available

12

12_018_02

Retainer-Piston Pin

$

$

Not available

13

12_108_01

Ring Set (Std.)

$

$

Not available

12_108_02

Ring Set (.25)

$

$

Not available

12_108_03

Ring Set (.50)

$

$

Not available

14

12_067_01

Connecting Rod STD

$

$

Not available

12_067_02

Connecting Rod .25

$

$

Not available

15

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

16

12_043_05

Gear-Governor ASM

$

$

Not available

17

Toro SM_0631005

Washer-Governor Gear Thrust

$

$

Currently unavailable

18

12_144_02

Shaft-Govenor Gear

$

$

Not available

$

$

Currently unavailable

20

12_144_01

Rod-Push

$

$

Not available

21

Toro X-25-102

Washer

$

$

Currently unavailable

22

Toro SM_0631015

Washer-Governor Shaft

$

$

Currently unavailable

23

12_032_01

Seal

$

$

Not available

24

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable
