30152 - Toro 52" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) CARRIER FRAME Parts Diagram

52" Side-Discharge Mower Deck

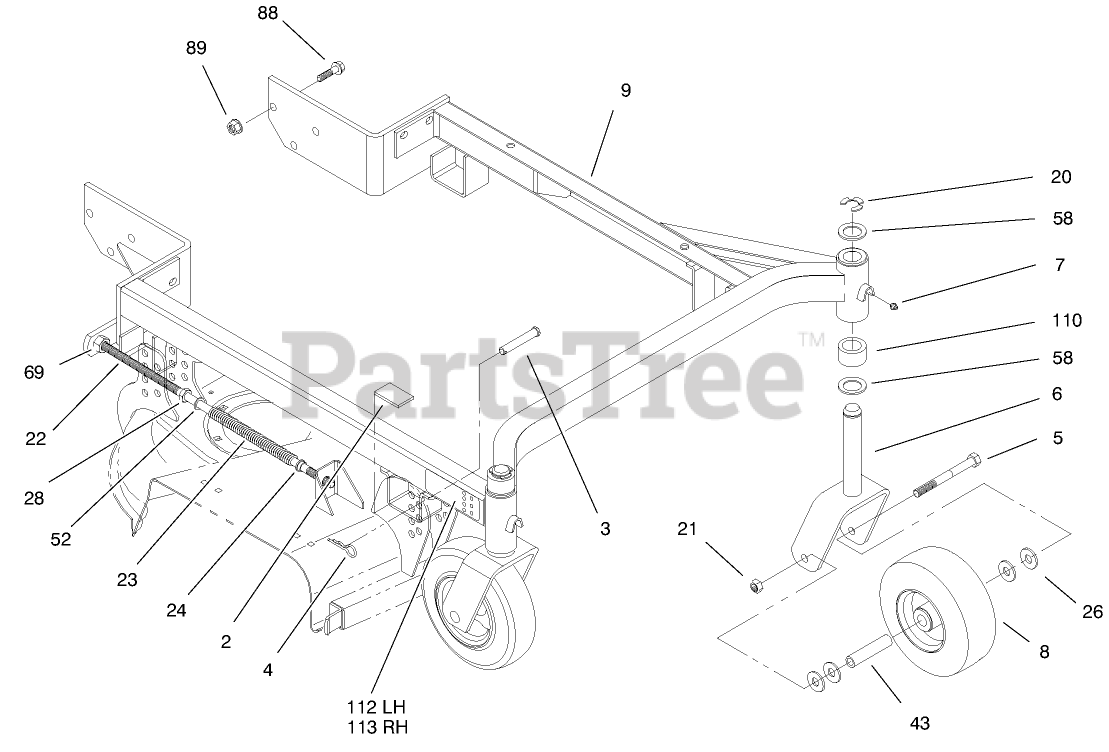

CARRIER FRAME Parts Diagram

  • Title

2

Toro 74-0350

CUSHION-RUBBER

$53.99

$

In Stock, Qty 5

0

3

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

4

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

5

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

6

Toro 98-2857

Castor Fork
(Superseded to 98-2857-01)

$

$

Not available

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 98-2859

CASTOR WHEEL ASM

$143.99

$

Usually ships in 3-6 days

0

8:3

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

8:4

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

8:6

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

9

Toro 94-4185

WA - CARRIER FRAME 52"

$

$

Not available

20

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

21

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

22

Toro 74-0310

SHAFT-ADJUSTING

$64.99

$

In Stock, only 2 left!

0

23

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

24

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

26

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

43

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

52

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

58

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

69

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

110

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

112

Toro 85-7450

DECAL-HOC, LH

$

$

Not available

113

Toro 85-7460

DECAL-HOC, RH

$

$

Not available
