30152 - Toro 52" Side-Discharge Mower Deck (SN: 049002001 - 049999999) (1994) CARRIER FRAME ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

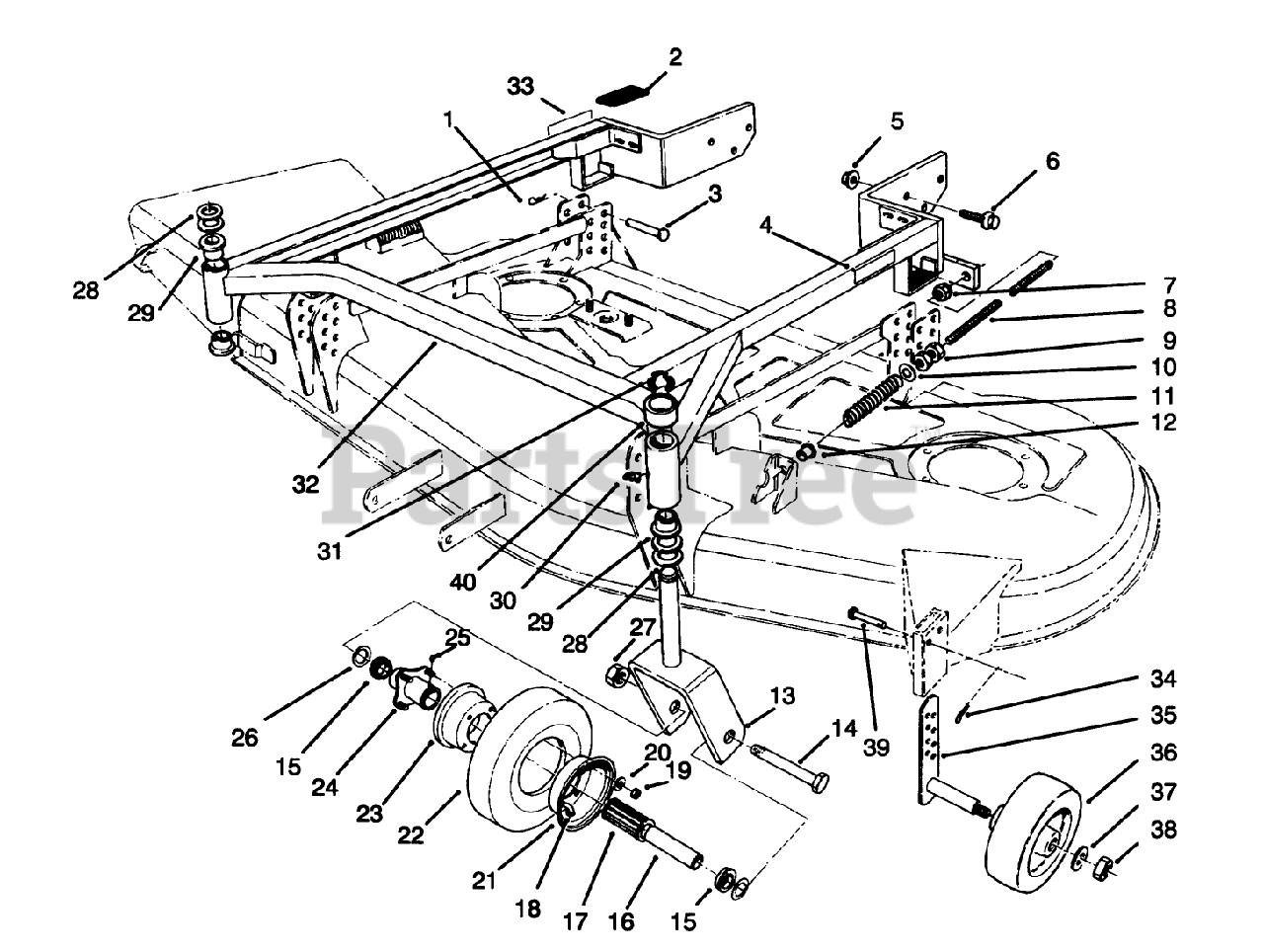

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

2

Toro 74-0350

CUSHION-RUBBER

$53.99

$

In Stock, Qty 5

0

3

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

4

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

Toro 85-7450

DECAL-HOC, LH

Note: Not Illustrated.

$

$

Not available

5

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

6

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

7

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

8

Toro 74-0310

SHAFT-ADJUSTING

$64.99

$

In Stock, only 2 left!

0

9

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

10

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

11

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

12

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

13

Toro 74-0251

Fork
(Superseded to 74-0251-01)

$

$

Not available

14

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

15

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, Qty 12

0

16

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 11

0

17

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

18

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

19

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

22

Toro 68-8960

TIRE

$64.99

$

In Stock, only 1 left!

0

23

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

24

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

25

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

26

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

28

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

29

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

30

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

31

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

32

Toro 74-0190

Frame-Carrier (Incl. Ref. #30)
(Superseded to 94-4185)

$

$

Not available

33

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

Toro 85-7460

DECAL-HOC, RH

Note: Not Illustrated.

$

$

Not available

34

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

35

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

36

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

37

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

40

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

Toro 13-3869

Assembly-Castor Wheel
(Superseded to 68-8970)

Note: Not Illustrated.

$127.99

$

Usually ships in 3-6 days

0
