30152 - Toro 52" Side-Discharge Mower Deck (SN: 009000001 - 009999999) (1989) CARRIER FRAME ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

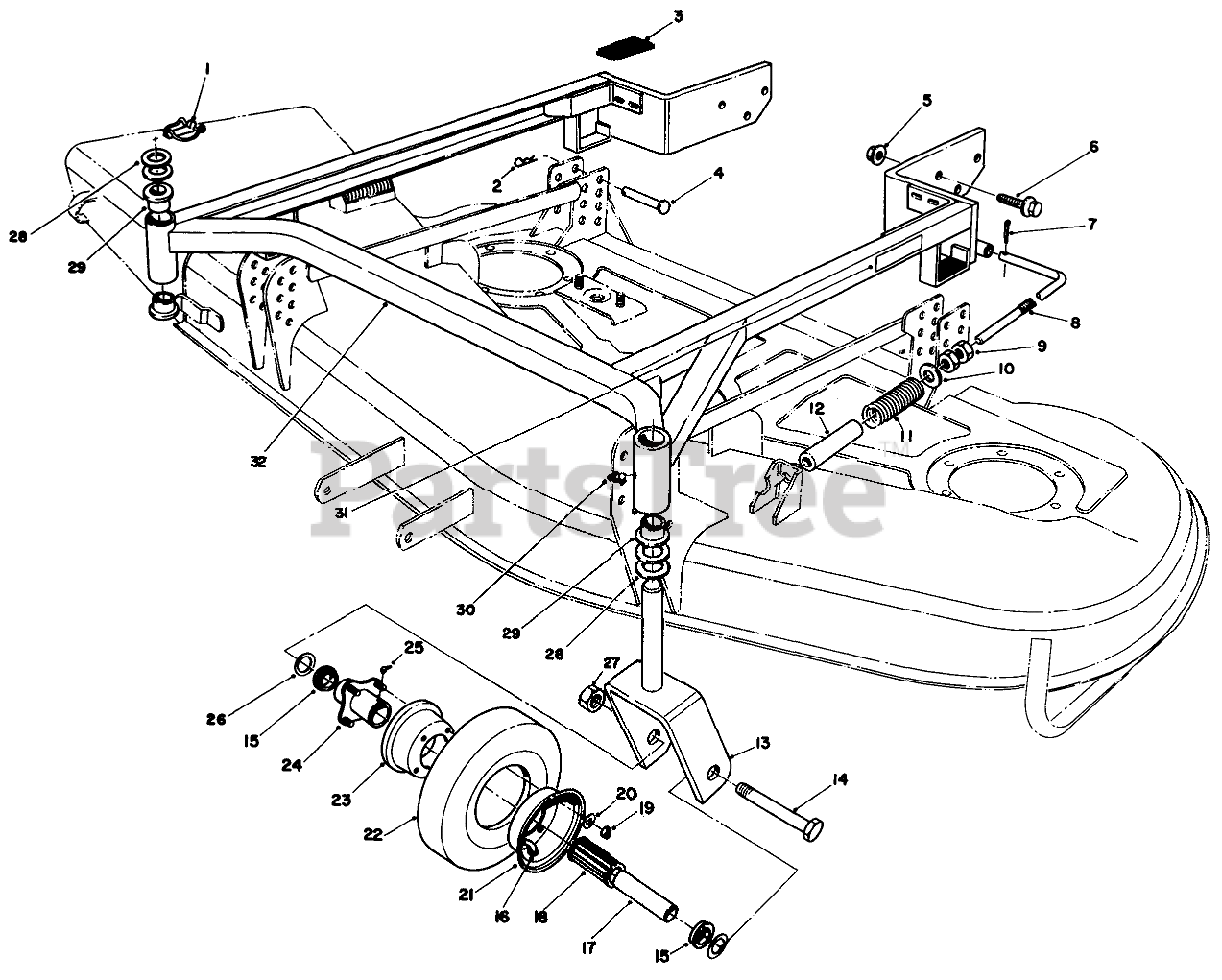

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

2

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

3

Toro 51-3720

Cushion-Rubber
(Superseded to 74-0350)

$53.99

$

In Stock, Qty 5

0

4

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

5

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

6

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

7

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 51-3490

ADJUSTING SHAFT
(Superseded to 920037)

$

$

Not available

9

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

10

Toro 51-3500

WASHER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 66-7140

COMP. SPRING

$

$

Not available

12

Toro 51-3480

SLEEVE-TUBE, 36 INCH

$

$

Not available

13

Toro 68-8900

Castor Fork
(Superseded to 68-8900-01)

$119.99

$

Usually ships in 3-6 days

0

14

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

15

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

16

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

17

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

18

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

19

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

22

$64.99

$

In Stock, only 1 left!

0

23

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

24

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

25

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

26

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

28

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

29

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 10

0

30

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

31

Toro 51-3970

Frame-Carrier (Incl. Ref. #30)
(Superseded to 94-4185)

$

$

Not available

32

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

Toro 13-3869

Assembly-Castor Wheel
(Superseded to 68-8970)

$127.99

$

Usually ships in 3-6 days

0
