30152 - Toro 52" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1988) CUTTING UNIT ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

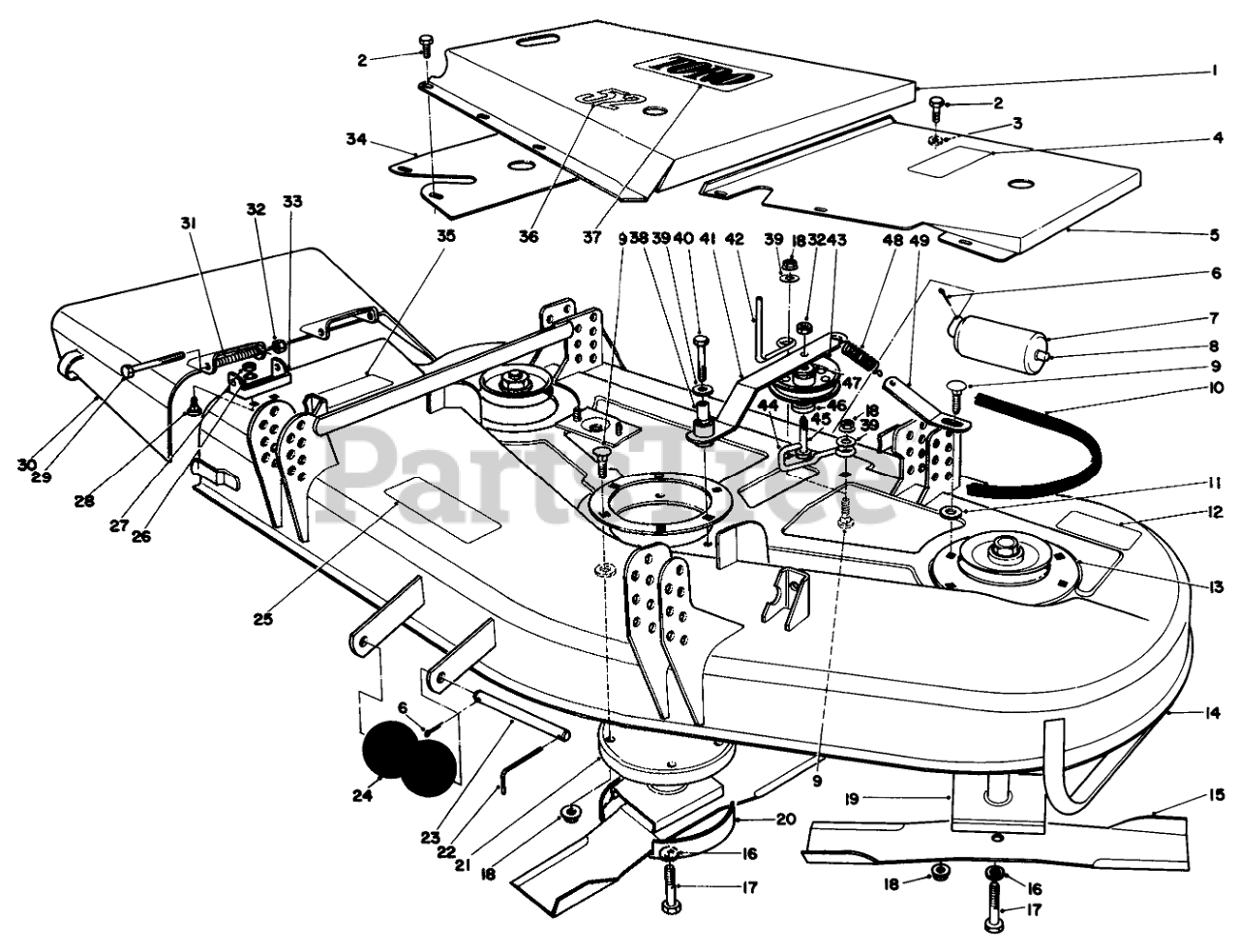

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 51-3930

CENTER COVER WA 52 R

$342.99

$

Usually ships in 3-6 days

0

2

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 42-6860

DECAL

$

$

Not available

5

Toro 51-3910

Cover
(Superseded to 51-3910-01)

$

$

Not available

6

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

7

Toro 36-1740

ROLLER-DECK

$39.99

$

In Stock, only 3 left!

0

8

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

9

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 27-1160

V-BELT

$55.99

$

In Stock, only 1 left!

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 26-7970

DECAL-CAUTION, BLADE

$16.99

$

Usually ships in 3-6 days

0

13

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$85.99

$

Usually ships in 3-6 days

0

14

Toro 51-3850

Deck Assembly

$

$

Not available

15

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$20.99

$

In Stock, only 3 left!

0

16

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

17

Toro 44-2200

SCREW-BLADE

$4.49

$

In Stock, Qty 8

0

18

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 27-0870

SPINDLE ASM

$543.99

$

Usually ships in 3-6 days

0

20

Toro 27-1000

Cup-Scalp
(Superseded to 72-9361)

$40.99

$

Usually ships in 3-6 days

0

21

Toro 54-7781

HOUSING - SPINDLE ASM

$920.99

$

Usually ships in 3-6 days

0

22

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

23

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

24

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

25

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

28

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

29

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

30

Toro 40-6200

Deflector
(Superseded to 13-3949)

$

$

Not available

31

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

32

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

33

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

34

Toro 51-3890

Cover
(Superseded to 51-3890-01)

$

$

Not available

35

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

36

Toro 51-3960

DECAL

$24.99

$

Usually ships in 3-6 days

0

37

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0

38

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Toro 55-7640

Arm-Idler
(Superseded to 55-7640-03)

$110.99

$

In Stock, only 1 left!

0

42

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

43

Toro 65-5940

PULLEY-IDLER

$36.99

$

In Stock, Qty 7

0

44

Toro 55-7620

GUIDE-BELT

$

$

Not available

45

Toro 55-7630

Bolt-Special
(Superseded to 321-18)

$2.49

$

In Stock, only 3 left!

0

46

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

47

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

48

Toro 51-3650

SPRING-EXTENSION

$13.99

$

In Stock, Qty 5

0

49

Toro 55-7650

PLATE-SPRING

$21.99

$

In Stock, Qty 9

0

Toro 56-2390

BLADE-SAIL, EXTRA HIGH
(Superseded to 56-2390-03)

$31.99

$

In Stock, Qty 13

0
