30152 - Toro 52" Side-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

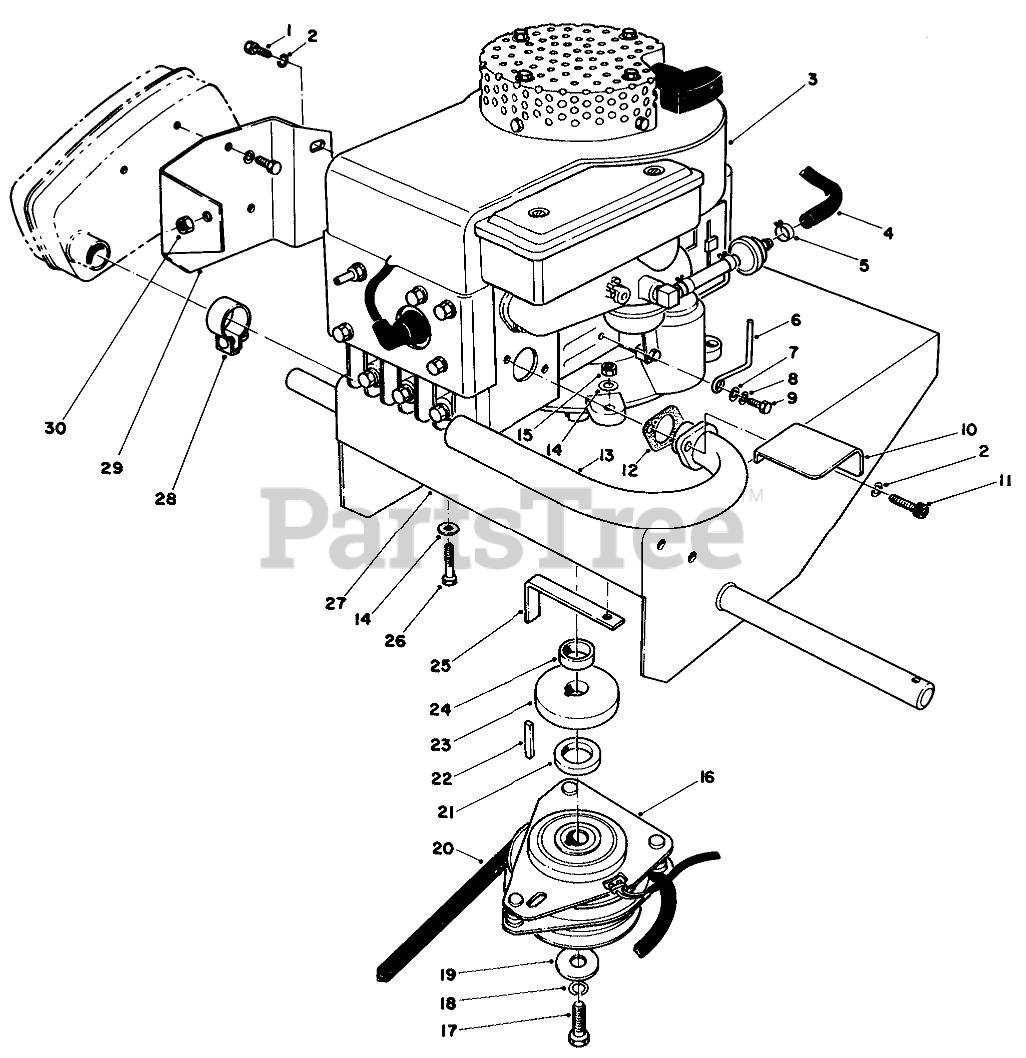

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 221-775

Engine

$

$

Currently unavailable

4

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

5

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

6

Toro 51-4390

BRUSH GUARD

$

$

Not available

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 51-4520

HEAT SHIELD

$

$

Not available

11

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

12

Toro 39-1810

Gasket

$

$

Not available

13

Toro 51-4500

EXHAUST PIPE WA

$

$

Not available

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 32151-1

7/8X046 IN SNAP RING

$0.99

$

Usually ships in 3-6 days

0

16

Toro 44-0770

Clutch Assembly-Deck
(Superseded to 54-0220)

$989.99

$

Usually ships in 3-6 days

0

17

Toro 3212-24

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

18

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

19

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

20

Toro 51-3600

Belt-Drive
(Superseded to 52-9950)

$71.99

$

Usually ships in 3-6 days

0

21

Toro 51-3280

SPACER-LOWER

$

$

Not available

22

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

23

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

24

Toro 51-3290

Spacer-Upper

$

$

Not available

25

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 1 left!

0

26

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 51-4100

Frame

$

$

Not available

28

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

29

Toro 51-4530

MUFFLER BRKT B

$

$

Not available

30

Toro 32151-1

7/8X046 IN SNAP RING

$0.99

$

Usually ships in 3-6 days

0

Toro 11-8169

Loose Parts

Note: Not Illustrated.

$

$

Currently unavailable

31

Toro 51-4410

Low Tone Muffler

$

$

Not available
