30151 - Toro 52" Side-Discharge Mower Deck (SN: 280000001 - 280999999) (2008) DECK AND SPINDLE ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

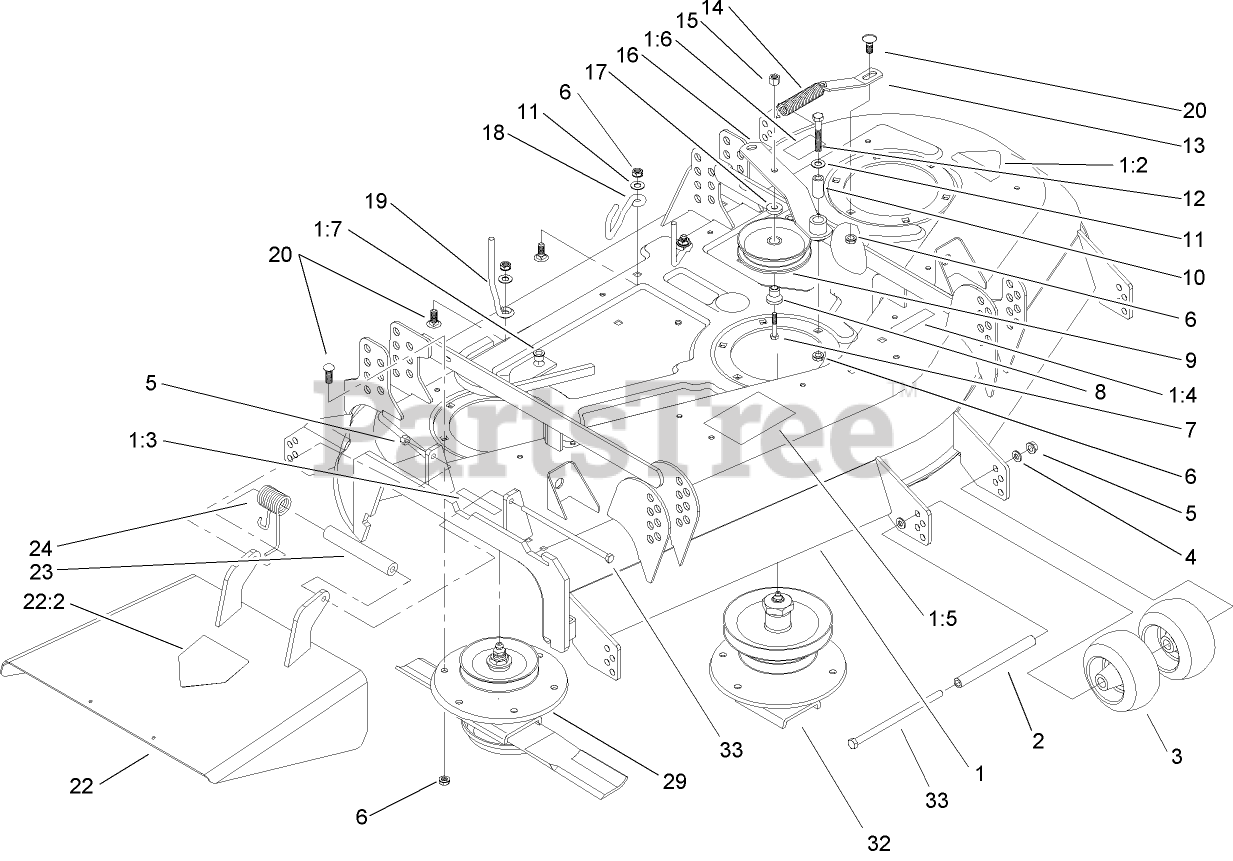

DECK AND SPINDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 106-0749

52IN DECK ASM

$4357.99

$

Usually ships in 3-6 days

0

1:2

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:3

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

1:4

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

1:5

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

1:6

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

1:7

Toro 32148-10

INSERT-NUT

$8.49

$

Usually ships in 3-6 days

0

2

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

3

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

8

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

9

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

10

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

12

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 55-7650

PLATE-SPRING

$24.99

$

In Stock, Qty 9

0

14

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

15

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

16

Toro 55-7640-03

IDLER ARM ASM

$128.99

$

In Stock, only 1 left!

0

17

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

18

Toro 55-7620

GUIDE-BELT

$

$

Not available

19

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

20

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

22

Toro 105-4623

Deflector ASM

$365.99

$

Usually ships in 3-6 days

0

22:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

23

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

24

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

29

Toro 11-5769

SPINDLE AND BLADE ASM

$

$

Not available

32

Toro 12-2549

CENTER SPINDLE AND BLADE ASM

$

$

Not available

33

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0
