30151 - Toro 52" Side-Discharge Mower Deck (SN: 250000001 - 250999999) (2005) COVER AND GAGE WHEEL ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

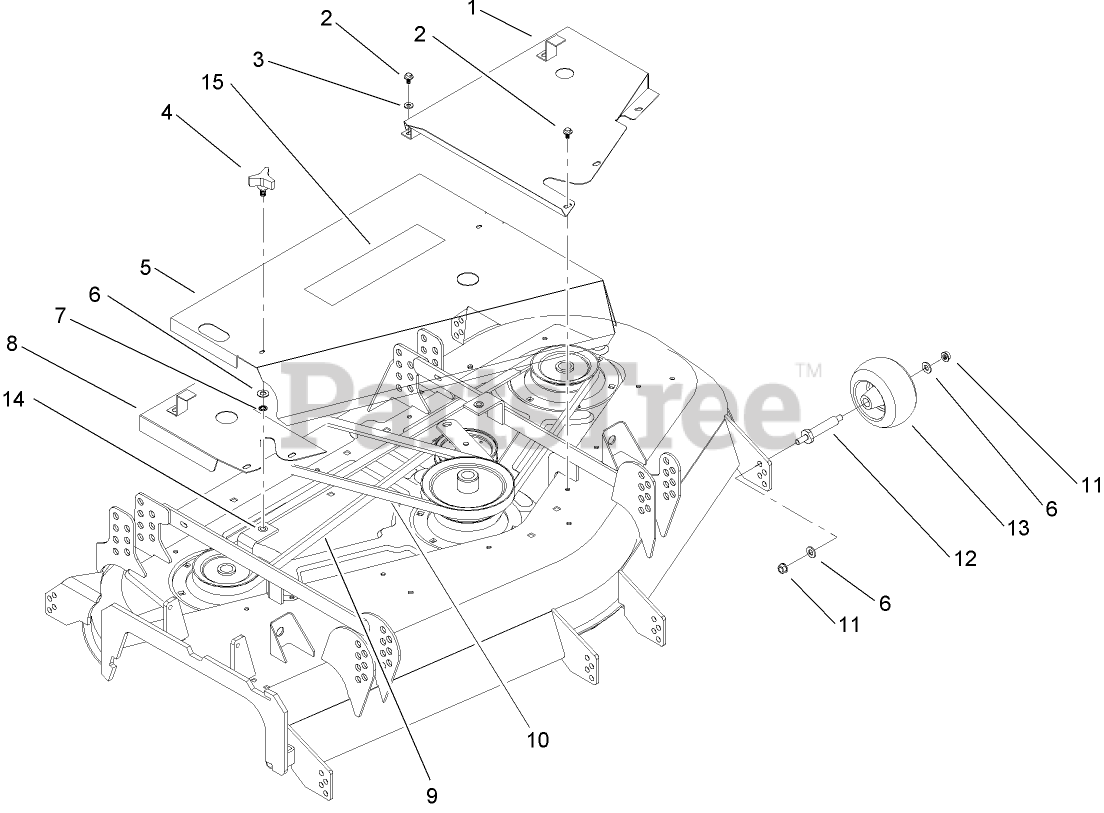

COVER AND GAGE WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 51-3910-01

LH COVER ASM

$

$

Not available

2

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

$8.49

$

In Stock, only 1 left!

0

5

Toro 82-5410-01

COVER-CENTER

$

$

Not available

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

7

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, only 1 left!

0

8

Toro 51-3890-01

RH COVER ASM

$

$

Not available

9

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 1 left!

0

10

Toro 99-2843

V-BELT-DECK DRIVE

$137.99

$

Usually ships in 3-6 days

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

12

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

13

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

14

Toro 32148-10

INSERT-NUT

$8.49

$

Usually ships in 3-6 days

0

15

$

$

Not available
