30151 - Toro 52" Side-Discharge Mower Deck (SN: 220000001 - 220999999) (2002) OUTSIDE SPINDLE ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

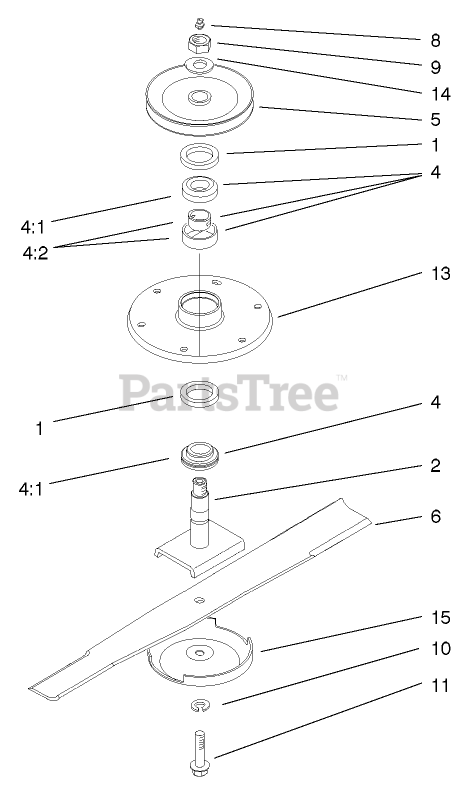

OUTSIDE SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

2

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

4

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

4:1

Toro 27-0960

BEARING ASM

$69.99

$

In Stock, only 3 left!

0

4:2

Toro 27-5970

SPACER-SET, MATCHED

$71.99

$

In Stock, only 1 left!

0

5

Toro 27-0970-03

PULLEY ASM

$53.99

$

Usually ships in 3-6 days

0

6

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

7

Toro 27-5970

SPACER-SET, MATCHED

$71.99

$

In Stock, only 1 left!

0

8

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

9

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

10

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

11

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

13

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

14

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

15

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0
