30149 - Toro 44" Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) DECK AND COVERS ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

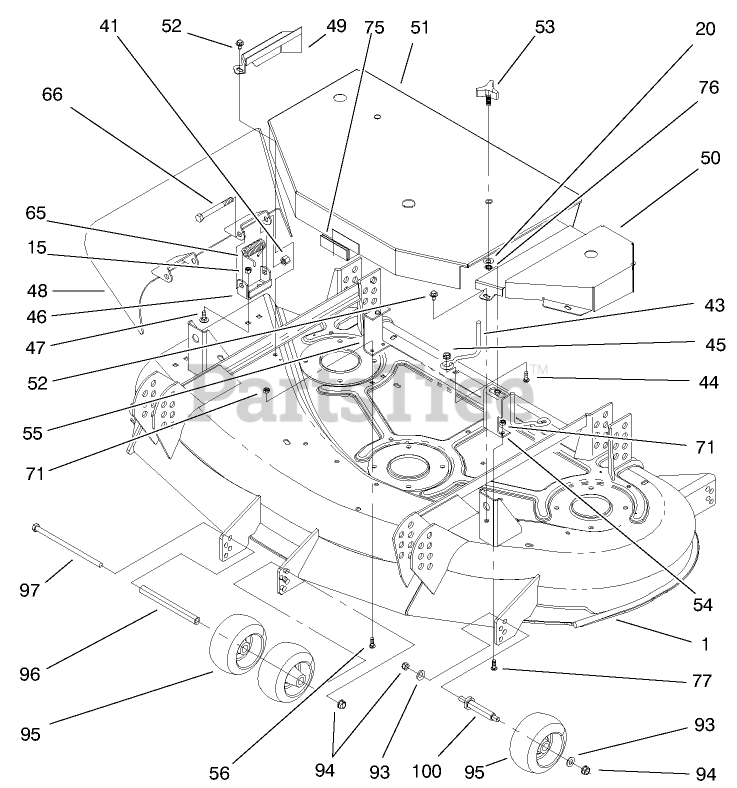

DECK AND COVERS ASSEMBLY Parts Diagram

  • Title

1

Toro 99-6448

DECK ASM

$

$

Not available

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

41

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

43

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

44

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

45

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

46

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

47

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

48

Toro 13-3899

DEFLECTOR

$

$

Not available

49

Toro 54-2250

Cover-RH
(Superseded to 54-2250-01)

$

$

Not available

50

Toro 54-2220

Cover-LH
(Superseded to 54-2220-01)

$166.99

$

Usually ships in 3-6 days

0

51

Toro 54-3190

Cover-Deck
(Superseded to 54-3190-01)

$

$

Not available

52

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

53

Toro 62-6520

KNOB

$8.49

$

In Stock, only 1 left!

0

54

Toro 54-3240

Bracket-Cover
(Superseded to 54-3240-03)

$

$

Not available

55

Toro 54-3230

Bracket-Cover RH
(Superseded to 54-3230-03)

$

$

Not available

56

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

65

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

66

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

71

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

75

Toro 29-0641

TRIM-JIFFY

$5.99

$

In Stock, only 3 left!

0

76

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, only 2 left!

0

77

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

93

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

94

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

95

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

96

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

97

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

100

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0
